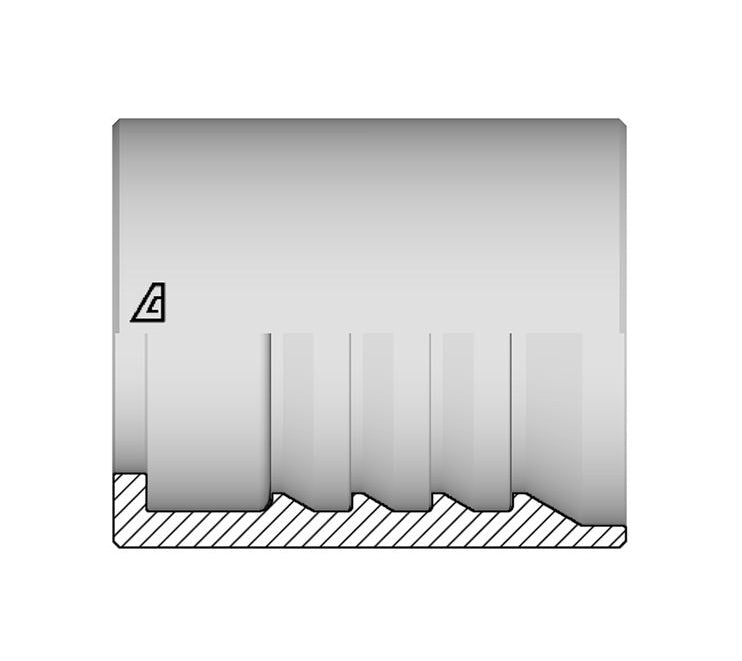

AS4-24 Alfagomma by Kuriyama | A Series / AS4 Series | Two-Piece Skive Ferrule | -24 Hose Dash Size | 1-1/2" Hose ID | Steel

Save $11.19

$39.16

$39.16 - $39.16

$39.16

$27.97

$27.97 - $27.97

$27.97

Kuriyama of America Inc.
Alfagomma | A Series / AS4 Series | Two-Piece Skive Ferrule

Specifications for Variant SKU: AS4-24 Kuriyama
Brand:	Alfagomma
Series:	A Series, AS4 Series
Material(s):	Steel
Compatible with the following Series:	ABT4K Series \| ABT5K Series \| ABT6K Series

About A Series / AS4 Series Ferrules:
Two piece skive ferrule for use with: "A" insert on spiral reinforced hoses Alfabiotech ABT4K, ABT5K, ABT6K.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Stainless Steel Part Number	Dash Size	Hose ID Size		B OD	L Length	Weight
Steel Part Number	Stainless Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
AS4-04	-	04	1/4"	6.4mm	22mm	26.3mm	0.07 lbs
AS4-06	-	06	3/8"	9.5mm	25mm	28.5mm	0.09 lbs
AS4-08	AS4-08-SS	08	1/2"	12.7mm	29mm	34.7mm	0.14 lbs
AS4-10	-	10	5/8"	15.9mm	32mm	37.5mm	0.17 lbs
AS4-12	-	12	3/4"	19.0mm	36mm	41.5mm	0.21 lbs
AS4-16	-	16	1"	25.4mm	45mm	47.7mm	0.37 lbs
AS4-20	-	20	1-1/4"	31.8mm	58mm	54.6mm	0.88 lbs
AS4-24	-	24	1-1/2"	38.1mm	67mm	61.0mm	1.08 lbs
AS4-32	-	32	2"	50.8mm	82mm	75.1mm	1.76 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
