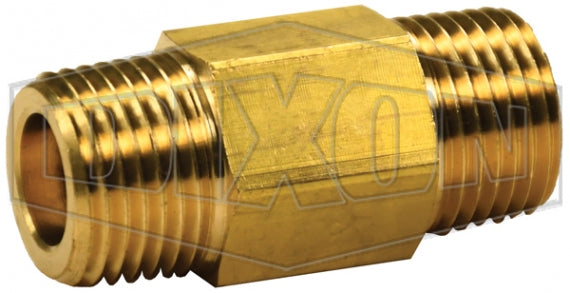

ASP3103-40 by Dixon Valve | Pneumatic Disposable In-Line Nipple Filter | 3/8" Male NPT | 300 PSI | 30 SCFM Air Flow | 40 Micron Element | Brass

Save $1.40

$12.60

$12.60 - $12.60

$12.60

$11.20

$11.20 - $11.20

$11.20

Dixon Valve
Pneumatic Disposable In-Line Nipple Filter

For filtration of water, oil, and air.

Quantity

Specifications for Variant SKU: ASP3103-40 Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPT, 3/8in Male NPT, Some Ends Match
Material(s):	Brass

Use:
Can be installed at point of use.
Features:
Compact and lightweight. Shape element is conical rather than disc, providing a larger filtering flow and a true, uninterrupted axial flow. Male x female configuration.
Construction:
Brass.
Specifications:
Maximum operating pressure: 300 PSI. Temperature range: 35 °F to 300 °F (2 °C to 149 °C).

Brass Part Number	Male NPT	Element	Overall Length	Hex	Air Flow
ASP3101-40	1/8"	40 Micron	1-1/4"	7/16"	10 SCFM
ASP3101-90	1/8"	90 Micron	1-1/4"	7/16"	10 SCFM
ASP3102-40	1/4"	40 Micron	1-1/2"	9/16"	20 SCFM
ASP3102-90	1/4"	90 Micron	1-1/2"	9/16"	20 SCFM
ASP3103-40	3/8"	40 Micron	1-3/4"	11/16"	30 SCFM
ASP3103-90	3/8"	90 Micron	1-3/4"	11/16"	30 SCFM
ASP3104-40	1/2"	40 Micron	2"	7/8"	50 SCFM
ASP3104-90	1/2"	90 Micron	2"	7/8"	50 SCFM
