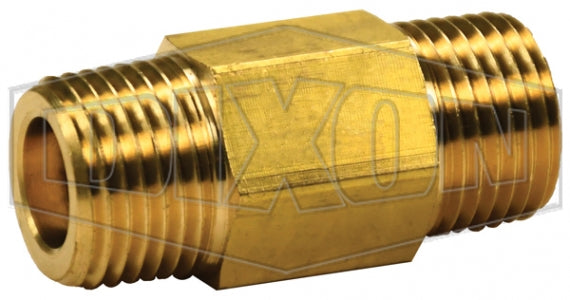

ASP3104-90 by Dixon Valve | Pneumatic Disposable In-Line Nipple Filter | 1/2" Male NPT | 300 PSI | 50 SCFM Air Flow | 90 Micron Element | Brass

Save $1.83

$16.48

$16.48 - $16.48

$16.48

$14.65

$14.65 - $14.65

$14.65

Dixon Valve
Pneumatic Disposable In-Line Nipple Filter

For filtration of water, oil, and air.

Quantity

Specifications for Variant SKU: ASP3104-90 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Male NPT, Some Ends Match
Material(s):	Brass

Use:
Can be installed at point of use.
Features:
Compact and lightweight. Shape element is conical rather than disc, providing a larger filtering flow and a true, uninterrupted axial flow. Male x female configuration.
Construction:
Brass.
Specifications:
Maximum operating pressure: 300 PSI. Temperature range: 35 °F to 300 °F (2 °C to 149 °C).

Brass Part Number	Male NPT	Element	Overall Length	Hex	Air Flow
ASP3101-40	1/8"	40 Micron	1-1/4"	7/16"	10 SCFM
ASP3101-90	1/8"	90 Micron	1-1/4"	7/16"	10 SCFM
ASP3102-40	1/4"	40 Micron	1-1/2"	9/16"	20 SCFM
ASP3102-90	1/4"	90 Micron	1-1/2"	9/16"	20 SCFM
ASP3103-40	3/8"	40 Micron	1-3/4"	11/16"	30 SCFM
ASP3103-90	3/8"	90 Micron	1-3/4"	11/16"	30 SCFM
ASP3104-40	1/2"	40 Micron	2"	7/8"	50 SCFM
ASP3104-90	1/2"	90 Micron	2"	7/8"	50 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
