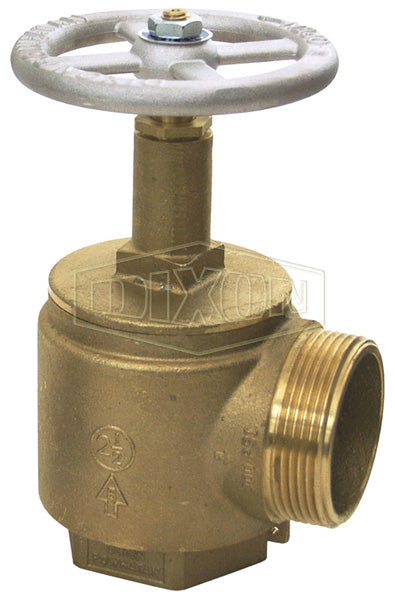

AV150T Dixon Cast Brass Domestic Angle Hose Valve - 1-1/2" Female NPT x 1-1/2" Male NPT

AV150T Dixon Cast Brass Domestic Angle Hose Valve - 1-1/2" Female NPT x 1-1/2" Male NPT

Save $153.06 Save $153.06
$382.65
$382.65 - $382.65
$382.65
$229.59
$229.59 - $229.59
$229.59

Dixon Fire Fittings
Angle Hose Valves - Cast Brass Domestic Angle Hose Valves
Specifications for Variant SKU: AV150T Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Male NPT
Material(s): Brass, Aluminum
Features:
  • Cast brass with an aluminum handwheel.
  • Working pressure: 300 PSI at 70°F (21°C)
  • Underwriters Listed and Factory Mutual approved.
Size A B C Closed C Open D F
1-1/2" 2-11/64" 2-7/32" 6-5/8" 7-21/32" 3-3/4" 2-13/16"
2-1/2" 3-3/16" 3-3/16" 9-1/4" 11" 5" 3-19/32"
Part Number Description Weight
(Lbs.)
AV150 1-1/2" Female NPT x 1-1/2" Male NST (NH) 4.5100
AV150S 1-1/2" Female NPT x 1-1/2" Male NPSH 5.3900
AV150T 1-1/2" Female NPT x 1-1/2" Male NPT 4.4050
AV250 2-1/2" Female NPT x 2-1/2" Male NST (NH) 9.0400
AV250NYFD 2-1/2" Female NPT x 1-1/2" Male NYFD 8.8400
AVF150 1-1/2" Female NPT x 1-1/2" Female NPT 4.9000
AVF250 2-1/2" Female NPT x 2-1/2" Female NPT 9.3000
Replacement Parts
AV150-W 1-1/2" Aluminum Replacement Handwheel 0.2200
AV250-W 2-1/2" Aluminum Replacement Handwheel 0.4400
AV150-N Handwheel Nut for 1-1/2" Valves 0.0100
AV250-N Handwheel Nut for 2-1/2" Valves 0.0690
AV150-RBR Valve Seal Rubber for 1-1/2" Valve 0.2200
AV250-RBR Valve Seal Rubber for 2-1/2" Valve 0.3395
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
