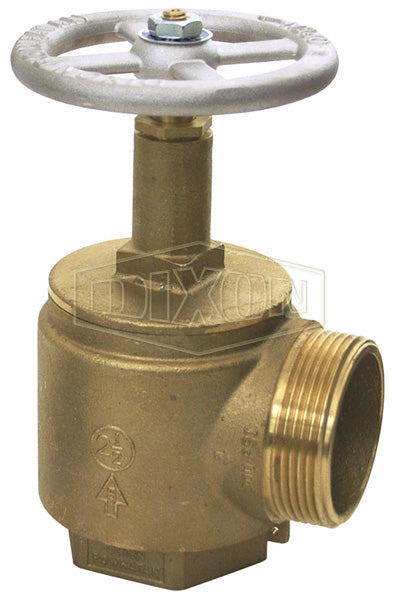

AV250 Dixon Cast Brass Domestic Angle Hose Valve - 2-1/2" Female NPT x 2-1/2" Male NST(NH)

AV250 Dixon Cast Brass Domestic Angle Hose Valve - 2-1/2" Female NPT x 2-1/2" Male NST(NH)

Save $257.53 Save $257.53
$643.82
$643.82 - $643.82
$643.82
$386.29
$386.29 - $386.29
$386.29

Dixon Fire Fittings
Angle Hose Valves - Cast Brass Domestic Angle Hose Valves
Specifications for Variant SKU: AV250 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Male NST
Material(s): Brass, Aluminum
Features:
  • Cast brass with an aluminum handwheel.
  • Working pressure: 300 PSI at 70°F (21°C)
  • Underwriters Listed and Factory Mutual approved.
Size A B C Closed C Open D F
1-1/2" 2-11/64" 2-7/32" 6-5/8" 7-21/32" 3-3/4" 2-13/16"
2-1/2" 3-3/16" 3-3/16" 9-1/4" 11" 5" 3-19/32"
Part Number Description Weight
(Lbs.)
AV150 1-1/2" Female NPT x 1-1/2" Male NST (NH) 4.5100
AV150S 1-1/2" Female NPT x 1-1/2" Male NPSH 5.3900
AV150T 1-1/2" Female NPT x 1-1/2" Male NPT 4.4050
AV250 2-1/2" Female NPT x 2-1/2" Male NST (NH) 9.0400
AV250NYFD 2-1/2" Female NPT x 1-1/2" Male NYFD 8.8400
AVF150 1-1/2" Female NPT x 1-1/2" Female NPT 4.9000
AVF250 2-1/2" Female NPT x 2-1/2" Female NPT 9.3000
Replacement Parts
AV150-W 1-1/2" Aluminum Replacement Handwheel 0.2200
AV250-W 2-1/2" Aluminum Replacement Handwheel 0.4400
AV150-N Handwheel Nut for 1-1/2" Valves 0.0100
AV250-N Handwheel Nut for 2-1/2" Valves 0.0690
AV150-RBR Valve Seal Rubber for 1-1/2" Valve 0.2200
AV250-RBR Valve Seal Rubber for 2-1/2" Valve 0.3395
