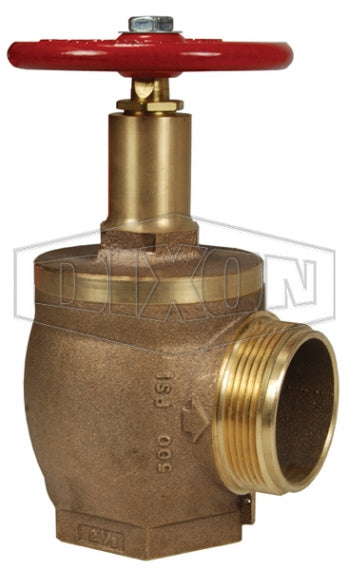

AV5-250NYFD Dixon Brass 500# Angle Hose Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NYFD Outlet

AV5-250NYFD Dixon Brass 500# Angle Hose Valve - 2-1/2" Female NPT Inlet x 2-1/2" Male NYFD Outlet

Save $50.34 Save $50.34
$610.38
$610.38 - $610.38
$610.38
$560.04
$560.04 - $560.04
$560.04

Dixon Fire Fittings
500# Angle Hose Valve - Cast Brass

The only angle valve designed and approved to manage 500 PSI pressure in piping systems where it is necessary to access the system for a fire hose connection. Typical applications are in fire department, gravity and pressure tank connections, test connections and public water supplies to sprinkler and standpipe systems.
Specifications for Variant SKU: AV5-250NYFD Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Male NYFD
Material(s): Brass
Features:
  • Designed and approved to manage 500 PSI pressures in piping systems.
  • Red handwheel.
  • Factory Mutual approved.
  • New York City Board of Standards and Appeals, approval # MEA 54-07-E.
  • Maximum operating pressure: 500 PSI at 70°F (21°C).
Part Number Inlet Outlet Weight
(Lbs.)
AV5-250F 2-1/2" Female NPT Inlet 2-1/2" Male NST (NH) Outlet 13.9000
AV5-250NYFD 2-1/2" Female NPT Inlet 2-1/2" Male NYFD Outlet 12.5000
AVF5-250 2-1/2" Female NPT Inlet 2-1/2" Female NPT Outlet 13.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
