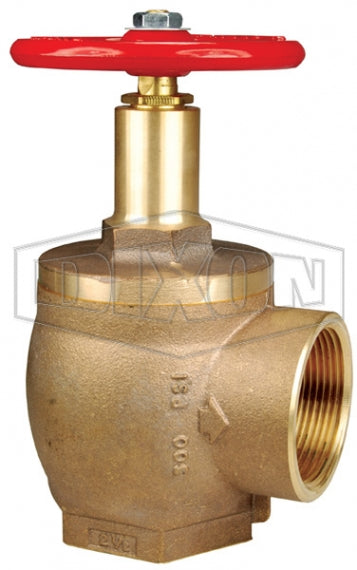

AVF5-250 Dixon Brass 500# Angle Hose Valve - 2-1/2" Female NPT Inlet x 2-1/2" Female NPT Outlet

$470.04

Dixon Fire Fittings
500# Angle Hose Valve - Cast Brass

The only angle valve designed and approved to manage 500 PSI pressure in piping systems where it is necessary to access the system for a fire hose connection. Typical applications are in fire department, gravity and pressure tank connections, test connections and public water supplies to sprinkler and standpipe systems.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: AVF5-250 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Female NPT X 2-1/2in Female NPT X Some Ends Match
Material(s): Brass
Features:
  • Designed and approved to manage 500 PSI pressures in piping systems.
  • Red handwheel.
  • Factory Mutual approved.
  • New York City Board of Standards and Appeals, approval # MEA 54-07-E.
  • Maximum operating pressure: 500 PSI at 70°F (21°C).
Part Number Inlet Outlet Weight
(Lbs.)
AV5-250F 2-1/2" Female NPT Inlet 2-1/2" Male NST (NH) Outlet 13.9000
AV5-250NYFD 2-1/2" Female NPT Inlet 2-1/2" Male NYFD Outlet 12.5000
AVF5-250 2-1/2" Female NPT Inlet 2-1/2" Female NPT Outlet 13.0000
