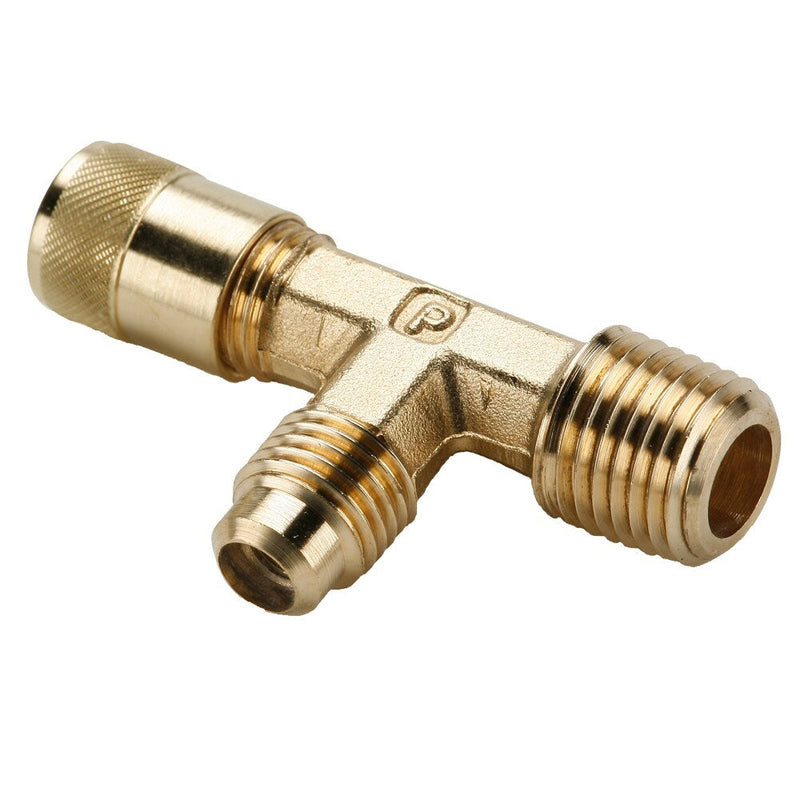

AVT3-2 by Parker | Access Valve | 1/8" Male Pipe or 1/4" O.D. Solder on Run x 1/4" Access on Run and Branch w/ One Core and Cap | Tee | Brass | Pack of 5

AVT3-2 by Parker | Access Valve | 1/8" Male Pipe or 1/4" O.D. Solder on Run x 1/4" Access on Run and Branch w/ One Core and Cap | Tee | Brass | Pack of 5

Save $162.30 Save $162.30
$405.75
$405.75 - $405.75
$405.75
$243.45
$243.45 - $243.45
$243.45

by Parker Hannifin
Access Valves:Forged Male Run Tee AVT3

Package Quantity: 5 Units

Specifications for Variant SKU: AVT3-2 Parker | 5 |
Series: AVT3 Series
Shape (Orientation): Tee
Material(s): Brass
Product Features:
  • All brass construction
  • 1/4” SAE male flare access ports
  • Finger tight quick seal caps
  • Access valves with pipe connections have internal ODS solder cups
Markets:
  • Refrigeration
  • Air Conditioning
Applications:
  • Pressure Testing
  • Purging
  • Charging Refrigeration Lines
Specification:
Temperature Range: -20° to +220° F (-28.8° to +104.4° C)
Pressure Range: Up to 500 PSI (34.3 bar)
Compatible Tubing:
  • Copper
Part Number Tube Size
AVT3-2 1/8"
AVT3-4 1/4"

Product comes with valve core loose and should be torqued after brazing to ARI 720 standard.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
