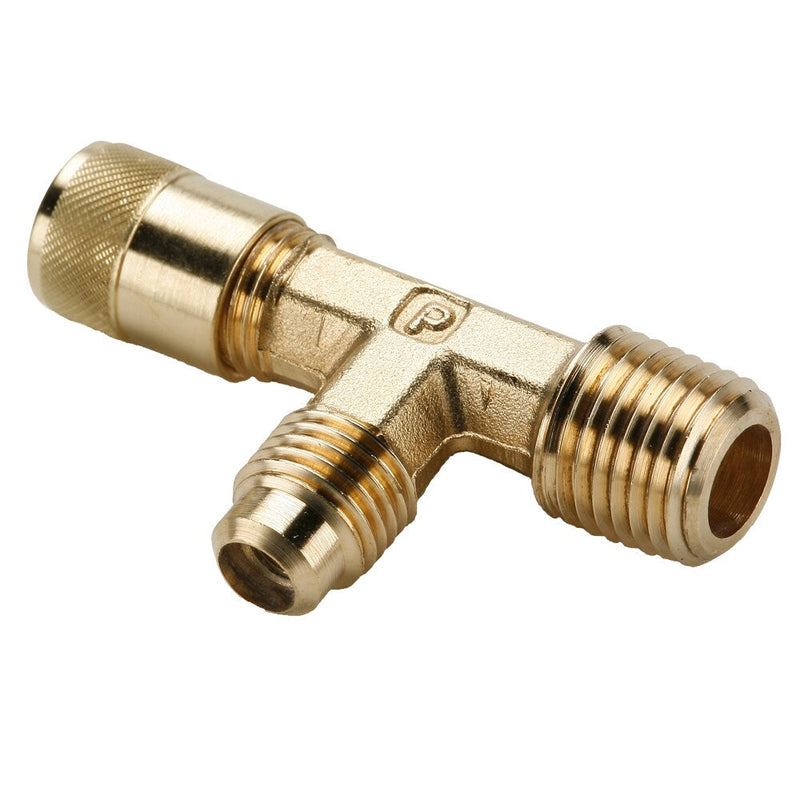

AVT3-4 by Parker | Access Valve | 1/4" Male Pipe or 5/16" O.D. Solder on Run x 1/4" Access on Run and Branch w/ One Core and Cap | Tee | Brass | Pack of 3

AVT3-4 by Parker | Access Valve | 1/4" Male Pipe or 5/16" O.D. Solder on Run x 1/4" Access on Run and Branch w/ One Core and Cap | Tee | Brass | Pack of 3

Save $20.42 Save $20.42
$51.05
$51.05 - $51.05
$51.05
$30.63
$30.63 - $30.63
$30.63

by Parker Hannifin
Access Valves:Forged Male Run Tee AVT3

Package Quantity: 3 Units

Specifications for Variant SKU: AVT3-4 Parker | 3 |
Series: AVT3 Series
Shape (Orientation): Tee
Material(s): Brass
Product Features:
  • All brass construction
  • 1/4” SAE male flare access ports
  • Finger tight quick seal caps
  • Access valves with pipe connections have internal ODS solder cups
Markets:
  • Refrigeration
  • Air Conditioning
Applications:
  • Pressure Testing
  • Purging
  • Charging Refrigeration Lines
Specification:
Temperature Range: -20° to +220° F (-28.8° to +104.4° C)
Pressure Range: Up to 500 PSI (34.3 bar)
Compatible Tubing:
  • Copper
Part Number Tube Size
AVT3-2 1/8"
AVT3-4 1/4"

Product comes with valve core loose and should be torqued after brazing to ARI 720 standard.
