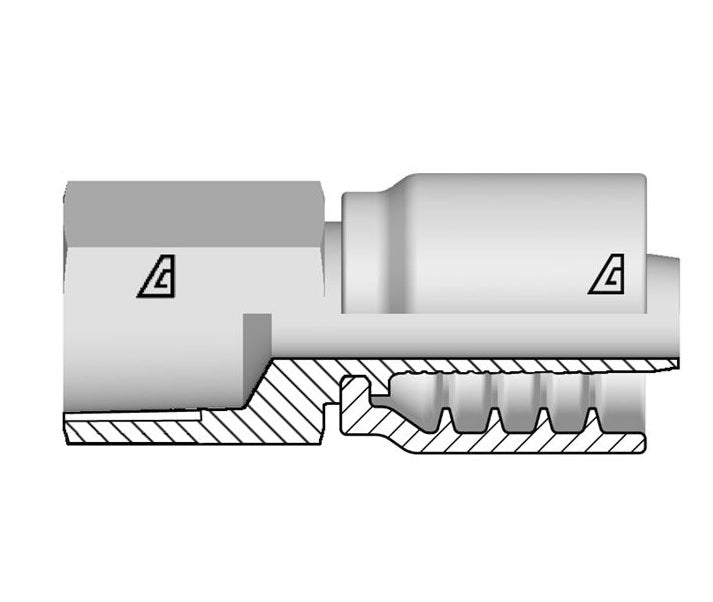

B-0404-FNPR Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -04 Hose ID x -04 Female NPTF | Steel

Name: B-0404-FNPR Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -04 Hose ID x -04 Female NPTF | Steel
Brand: Kuriyama
SKU: B-0404-FNPR Kuriyama
Price: 10.22 USD
Availability: InStock

Save $4.09

$14.31

$14.31 - $14.31

$14.31

$10.22

$10.22 - $10.22

$10.22

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female NPTF

Specifications for Variant SKU: B-0404-FNPR Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female NPTF
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size(in) - TPI	(mm)	(mm)	lbs/each
B-0404-FNPR	04	1/4"	6.4mm	04	1/4-18	27.8mm	19mm	0.16 lbs
B-0606-FNPR	06	3/8"	9.5mm	06	3/8-18	28.8mm	22mm	0.20 lbs
B-0808-FNPR	08	1/2"	12.7mm	08	1/2-14	35.6mm	25mm	0.29 lbs
B-1212-FNPR	12	3/4"	19.0mm	12	3/4-14	38.1mm	32mm	0.48 lbs
B-1616-FNPR	16	1"	25.4mm	16	1-11-1/2	44.9mm	38mm	0.74 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
