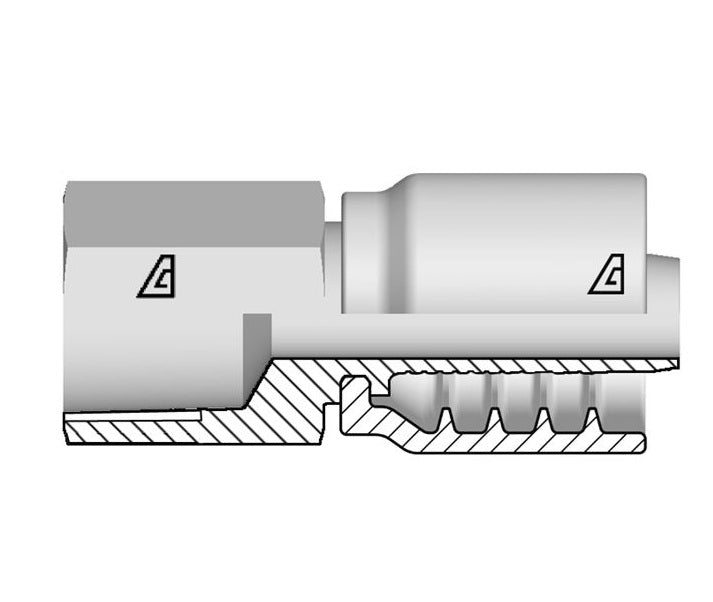

B-1212-FNPR Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -12 Female NPTF | Steel

B-1212-FNPR Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 Hose ID x -12 Female NPTF | Steel

Save $8.65 Save $8.65
$30.28
$30.28 - $30.28
$30.28
$21.63
$21.63 - $21.63
$21.63

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female NPTF
Specifications for Variant SKU: B-1212-FNPR Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Female NPTF
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) lbs/each
B-0404-FNPR 04 1/4" 6.4mm 04 1/4-18 27.8mm 19mm 0.16 lbs
B-0606-FNPR 06 3/8" 9.5mm 06 3/8-18 28.8mm 22mm 0.20 lbs
B-0808-FNPR 08 1/2" 12.7mm 08 1/2-14 35.6mm 25mm 0.29 lbs
B-1212-FNPR 12 3/4" 19.0mm 12 3/4-14 38.1mm 32mm 0.48 lbs
B-1616-FNPR 16 1" 25.4mm 16 1-11-1/2 44.9mm 38mm 0.74 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
