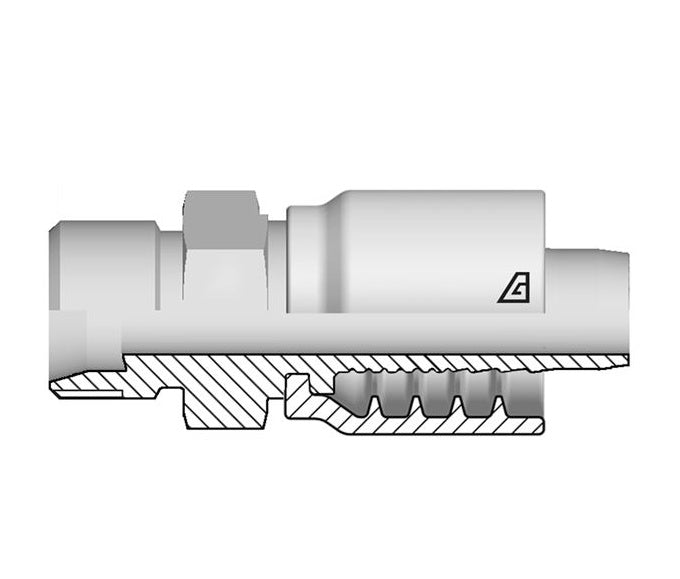

B-0606-BTTF Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -06 Bite Type Tube | Steel

B-0606-BTTF Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -06 Bite Type Tube | Steel

Save $4.09 Save $4.09
$14.32
$14.32 - $14.32
$14.32
$10.23
$10.23 - $10.23
$10.23

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Bite Type Tube Fitting

Does Not Include Nut or Ferrule.
Specifications for Variant SKU: B-0606-BTTF Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) lbs/each
B-0404-BTTF 04 1/4" 6.4mm 04 7/16-20 21.8mm 12mm 0.13 lbs
B-0506-BTTF 05 5/16" 7.9mm 06 1/2-20 24.2mm 16mm 0.18 lbs
B-0606-BTTF 06 3/8" 9.5mm 06 9/16-18 24.2mm 16mm 0.18 lbs
B-0608-BTTF 06 3/8" 9.5mm 08 3/4-16 27.6mm 22mm 0.25 lbs
B-0808-BTTF 08 1/2" 12.7mm 08 3/4-16 28.4mm 22mm 0.28 lbs
B-1212-BTTF 12 3/4" 19.0mm 12 1-1/16-12 33.1mm 30mm 0.44 lbs
B-1616-BTTF 16 1" 25.4mm 16 1-5/16-12 37.9mm 36mm 0.95 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
