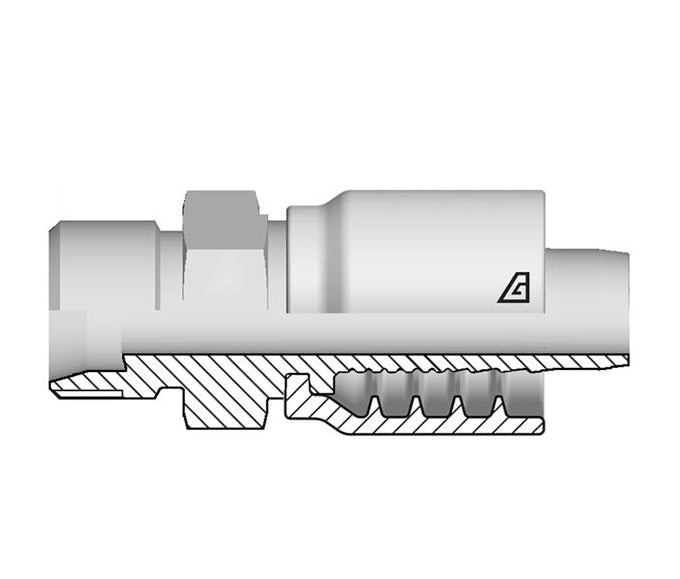

B-1616-BTTF Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Hose ID x -16 Bite Type Tube | Steel

Name: B-1616-BTTF Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Hose ID x -16 Bite Type Tube | Steel
Brand: Kuriyama
SKU: B-1616-BTTF Kuriyama
Price: 37.64 USD
Availability: InStock

Save $15.06

$52.70

$52.70 - $52.70

$52.70

$37.64

$37.64 - $37.64

$37.64

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Bite Type Tube Fitting

Does Not Include Nut or Ferrule.

Specifications for Variant SKU: B-1616-BTTF Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size(in) - TPI	(mm)	(mm)	lbs/each
B-0404-BTTF	04	1/4"	6.4mm	04	7/16-20	21.8mm	12mm	0.13 lbs
B-0506-BTTF	05	5/16"	7.9mm	06	1/2-20	24.2mm	16mm	0.18 lbs
B-0606-BTTF	06	3/8"	9.5mm	06	9/16-18	24.2mm	16mm	0.18 lbs
B-0608-BTTF	06	3/8"	9.5mm	08	3/4-16	27.6mm	22mm	0.25 lbs
B-0808-BTTF	08	1/2"	12.7mm	08	3/4-16	28.4mm	22mm	0.28 lbs
B-1212-BTTF	12	3/4"	19.0mm	12	1-1/16-12	33.1mm	30mm	0.44 lbs
B-1616-BTTF	16	1"	25.4mm	16	1-5/16-12	37.9mm	36mm	0.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
