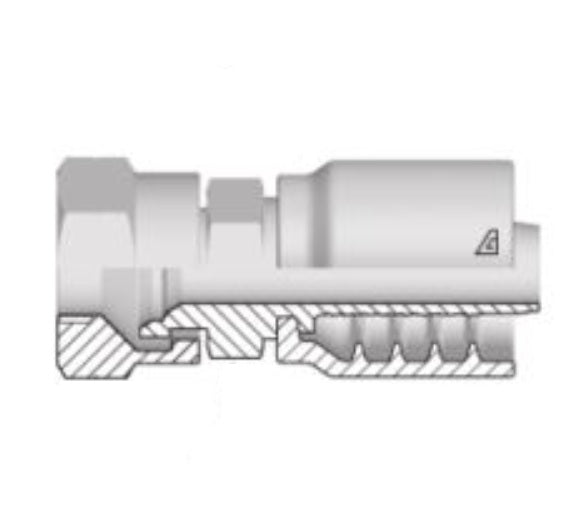

B-0808-FJIS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | -08 Hose ID x -08 Female JIS Swivel 30° Seat | Steel

Name: B-0808-FJIS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | -08 Hose ID x -08 Female JIS Swivel 30° Seat | Steel
Brand: Kuriyama
SKU: B-0808-FJIS Kuriyama
Price: 16.36 USD
Availability: InStock

Save $6.54

$22.90

$22.90 - $22.90

$22.90

$16.36

$16.36 - $16.36

$16.36

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | Hose Barb x Female JIS Swivel 30° Seat

Specifications for Variant SKU: B-0808-FJIS Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/2in Female JIS
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	CH2	Weight
Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in)-TPI	(mm)	(mm)	(mm)	lbs/each
B-0404-FJIS	04	1/4"	6.4mm	04	1/4-19	20.8mm	17mm	19mm	0.16 lbs
B-0606-FJIS	06	3/8"	9.5mm	06	3/8-19	21.8mm	19mm	22mm	0.21 lbs
B-0808-FJIS	08	1/2"	12.7mm	08	1/2-14	23.6mm	22mm	27mm	0.31 lbs
B-1212-FJIS	12	3/4"	19.0mm	12	3/4-14	27.1mm	30mm	36mm	0.58 lbs
B-1616-FJIS	16	1"	25.4mm	16	1-11	32.9mm	36mm	41mm	0.87 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
