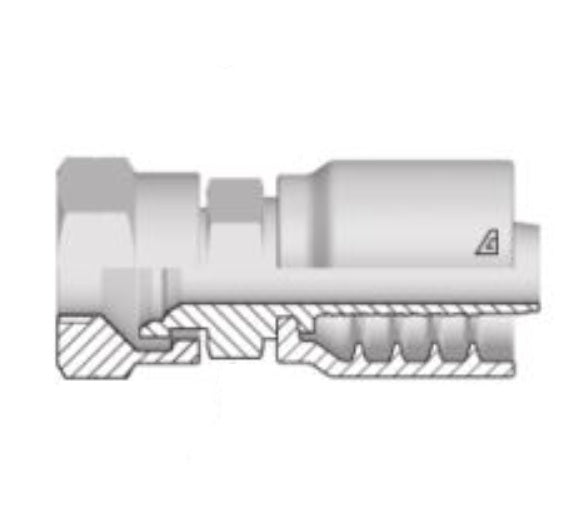

B-1212-FJIS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | -12 Hose ID x -12 Female JIS Swivel 30° Seat | Steel

B-1212-FJIS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | -12 Hose ID x -12 Female JIS Swivel 30° Seat | Steel

Save $9.65 Save $9.65
$33.78
$33.78 - $33.78
$33.78
$24.13
$24.13 - $24.13
$24.13

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | B 8363 Type F | Hose Barb x Female JIS Swivel 30° Seat
Specifications for Variant SKU: B-1212-FJIS Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Female JIS
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 CH2 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size
(in)-TPI		 (mm) (mm) (mm) lbs/each
B-0404-FJIS 04 1/4" 6.4mm 04 1/4-19 20.8mm 17mm 19mm 0.16 lbs
B-0606-FJIS 06 3/8" 9.5mm 06 3/8-19 21.8mm 19mm 22mm 0.21 lbs
B-0808-FJIS 08 1/2" 12.7mm 08 1/2-14 23.6mm 22mm 27mm 0.31 lbs
B-1212-FJIS 12 3/4" 19.0mm 12 3/4-14 27.1mm 30mm 36mm 0.58 lbs
B-1616-FJIS 16 1" 25.4mm 16 1-11 32.9mm 36mm 41mm 0.87 lbs
