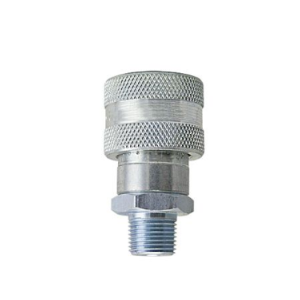

B-2WM2-S Breco by Foster | W Series | Quick Disconnect | 1/4" Socket x 1/4" Male NPT Thread | Valved | Straight | Steel

B-2WM2-S Breco by Foster | W Series | Quick Disconnect | 1/4" Socket x 1/4" Male NPT Thread | Valved | Straight | Steel

Save $16.23 Save $16.23
$40.58
$40.58 - $40.58
$40.58
$24.35
$24.35 - $24.35
$24.35

Foster Quick Disconnects - W Series 1/4" Sockets - Valved - Breco
Specifications for Variant SKU: B-2WM2-S ZSi-Foster
Brand: Breco
Series: W Series
Shape (Orientation): Straight
Material(s): Steel
W Series [High Pressure Coupling, Enerpac Interchange]
Features:
  • Machined from solid steel bar stock for durability
  • Threaded sleeve locking mechanism mates with plug threads for secure manual connection
  • Chrome alloy balls used for valving; spring-loaded for positive sealing
  • Metal-to-metal seal between ball and coined seat
  • Polyurethane body seal resists high pressure extrusion
  • Threaded valve retainer ensures positive valve alignment
 Applications:
The "W" Series couplings, with threaded union locking and precision ball-type check valves, are ideal for extreme high-pressure applications such as portable hydraulic rams.
Specifications:
Size Rated Pressure (psig) Static Temperature Range (std seals)
1/4", 3/8" 10,000 -10° to +250°F
Note:
Protective dust plugs and caps are essential to prolong the life of a quick coupling. Every hydraulic quick coupling purchase should include proper dust plug and cap selection.
Part No. Size (Socket) Thread Size
Valve Non-Valve
B-2WM2-S B-2WEM2-S 1/4" 1/4–18
B-3WM3-S B-3WEM3-S 3/8" 3/8–18
Part No. Size (Plug) Thread Size
Valve Non-Valve
B-W2F2-S B-W2EF2-S 1/4" 1/4–18
B-W3F3-S B-W3EF3-S 3/8" 3/8–18
