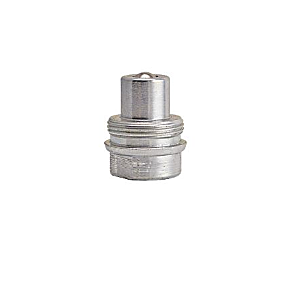

B-W3EF3-S Breco by Foster | W Series | Quick Disconnect | 3/8" Plug x 3/8" Female NPT Thread | Non-Valve | Steel

Save $3.71

$6.15

$6.15 - $6.15

$6.15

$2.44

$2.44 - $2.44

$2.44

Foster Quick Disconnects - W Series Plugs - Breco

Specifications for Variant SKU: B-W3EF3-S ZSi-Foster
Brand:	Breco
Series:	W Series
Shape (Orientation):	Straight
Material(s):	Steel

W Series [High Pressure Coupling, Enerpac Interchange]

Features:

Machined from solid steel bar stock for durability
Threaded sleeve locking mechanism mates with plug threads for secure manual connection
Chrome alloy balls used for valving; spring-loaded for positive sealing
Metal-to-metal seal between ball and coined seat
Polyurethane body seal resists high pressure extrusion
Threaded valve retainer ensures positive valve alignment

Applications:
The "W" Series couplings, with threaded union locking and precision ball-type check valves, are ideal for extreme high-pressure applications such as portable hydraulic rams.

Specifications:

Size	Rated Pressure (psig) Static	Temperature Range (std seals)
1/4", 3/8"	10,000	-10° to +250°F

Note:
Protective dust plugs and caps are essential to prolong the life of a quick coupling. Every hydraulic quick coupling purchase should include proper dust plug and cap selection.

Part No.		Size (Socket)	Thread Size
Valve	Non-Valve
B-2WM2-S	B-2WEM2-S	1/4"	1/4–18
B-3WM3-S	B-3WEM3-S	3/8"	3/8–18

Part No.		Size (Plug)	Thread Size
Valve	Non-Valve
B-W2F2-S	B-W2EF2-S	1/4"	1/4–18
B-W3F3-S	B-W3EF3-S	3/8"	3/8–18
