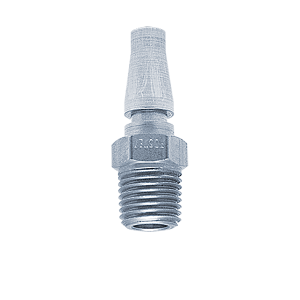

B-TL4M2-S Breco by Foster | TL Series | Twist Lock Quick Disconnect | 1/2" Plug x 1/4" Male NPT Thread | Steel

B-TL4M2-S Breco by Foster | TL Series | Twist Lock Quick Disconnect | 1/2" Plug x 1/4" Male NPT Thread | Steel

Save $3.51 Save $3.51
$8.78
$8.78 - $8.78
$8.78
$5.27
$5.27 - $5.27
$5.27

Foster Quick Disconnects - SHD & TL Series 1/2" Plugs - Breco
Specifications for Variant SKU: B-TL4M2-S ZSi-Foster
Brand: Breco
Series: TL Series
Shape (Orientation): Straight
Material(s): Steel
SHD & TL Series (Interchange with Schrader Standard & Heavy Duty)
Features:
  • Engineered for speedy coupling and uncoupling
  • To lock – push in; to unlock – rotate sleeve ? turn
  • Designed to protect against accidental uncoupling
  • Available in a variety of types and sizes to meet specific needs
  • Ideal for low to medium air flows, such as air tools
 Operation:
Automatic Push to Connect; Twist-to-release

Materials:
Aluminum bodies and zinc plated steel sleeves.
Buna-N seals. Brass adapters.
Specifications:
Temperature Range (Nitrile seal): -40° to +250°F
Locking Device: Twist-Lock
Vacuum Service: 27" HG
Type: One Way Shut-Off
Rated Pressure: 300 PSIG
Part Number Socket MPT Description
B-2TLM2-S 1/4" 1/4" Aluminum/Steel/Brass
B-2TLM3-S 1/4" 3/8" Aluminum/Steel/Brass
B-4TLM2-S 1/2" 1/4" Aluminum/Steel/Brass
Part Number Plug MPT Description
B-TL2M2-S 1/4" 1/4" Steel
B-TL4M2-S 1/2" 1/4" Steel
B-TL4M3-S 3/8" 1/2" Steel
B-TL4M4-S 1/2" 1/2" Steel
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
