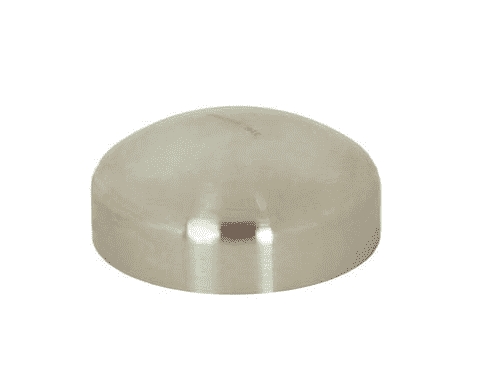

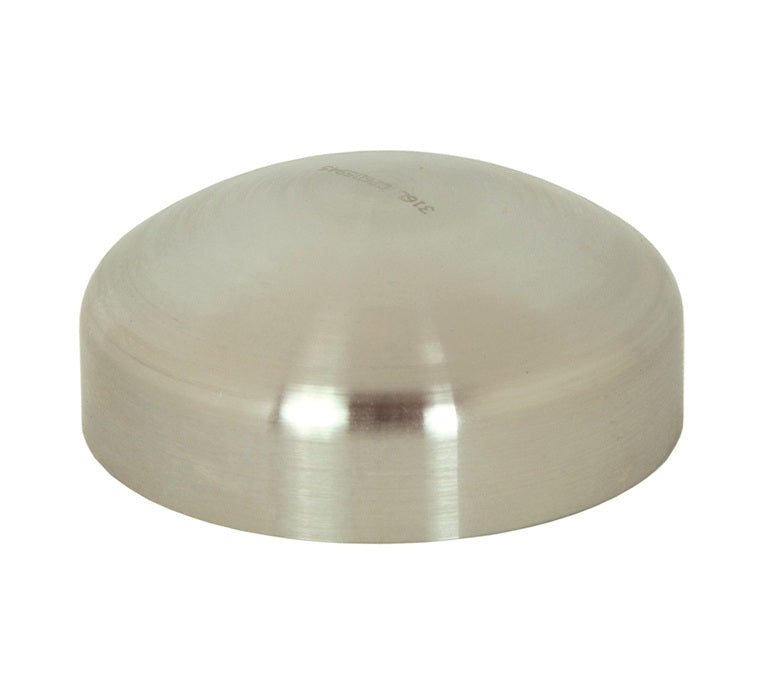

B16W-G100 Dixon 304 Stainless Steel Sanitary Unpolished End Cap - 1" Tube OD

B16W-G100 Dixon Valve 304 Stainless Steel Sanitary Unpolished End Cap - 1" Tube OD

Save $4.50 Save $4.50
$11.25
$11.25 - $11.25
$11.25
$6.75
$6.75 - $6.75
$6.75

Dixon Sanitary Fittings
Unpolished End Cap for Sanitary Weld Unpolished Elbows

Meets 21CFR 177.2600
Specifications for Variant SKU: B16W-G100 Dixon
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Features:
  • Finish: Unpolished
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C
- B16W-R50 1/2" 0.25" 0.50" 0.07"
- B16W-R75 3/4" 0.31" 0.75" 0.07"
B16W-G100 B16W-R100 1" 0.38" 1.00" 0.07"
B16W-G150 B16W-R150 1-1/2" 0.56" 1.50" 0.07"
B16W-G200 B16W-R200 2" 0.75" 2.00" 0.07"
B16W-G250 B16W-R250 2-1/2" 1.00" 2.50" 0.07"
B16W-G300 B16W-R300 3" 1.25" 3.00" 0.07"
B16W-G400 B16W-R400 4" 1.50" 4.00" 0.08"
B16W-G600 B16W-R600 6" 2.00" 6.00" 0.11"
B16W-G800 B16W-R800 8" 2.88" 8.00" 0.11"
