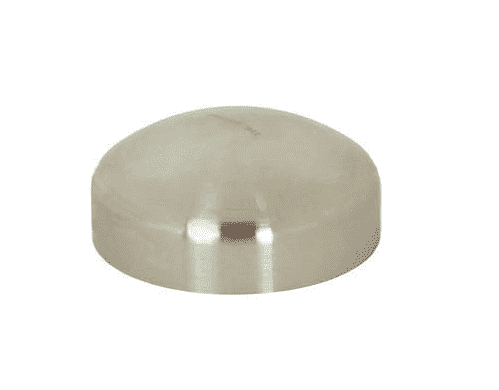

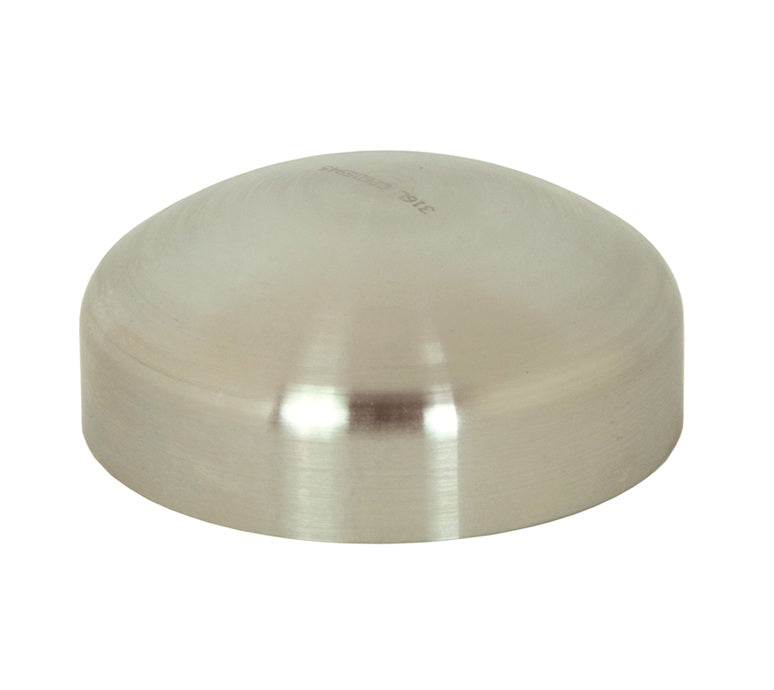

B16W-G800 Dixon Valve 304 Stainless Steel Sanitary Unpolished End Cap - 8" Tube OD

B16W-G800 Dixon Valve 304 Stainless Steel Sanitary Unpolished End Cap - 8" Tube OD

Save $88.13 Save $88.13
$220.33
$220.33 - $220.33
$220.33
$132.20
$132.20 - $132.20
$132.20

Dixon Sanitary Fittings
Unpolished End Cap for Sanitary Weld Unpolished Elbows

Meets 21CFR 177.2600
Specifications for Variant SKU: B16W-G800 Dixon
Material(s): 304 Stainless Steel
Features:
  • Finish: Unpolished
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C
- B16W-R50 1/2" 0.25" 0.50" 0.07"
- B16W-R75 3/4" 0.31" 0.75" 0.07"
B16W-G100 B16W-R100 1" 0.38" 1.00" 0.07"
B16W-G150 B16W-R150 1-1/2" 0.56" 1.50" 0.07"
B16W-G200 B16W-R200 2" 0.75" 2.00" 0.07"
B16W-G250 B16W-R250 2-1/2" 1.00" 2.50" 0.07"
B16W-G300 B16W-R300 3" 1.25" 3.00" 0.07"
B16W-G400 B16W-R400 4" 1.50" 4.00" 0.08"
B16W-G600 B16W-R600 6" 2.00" 6.00" 0.11"
B16W-G800 B16W-R800 8" 2.88" 8.00" 0.11"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
