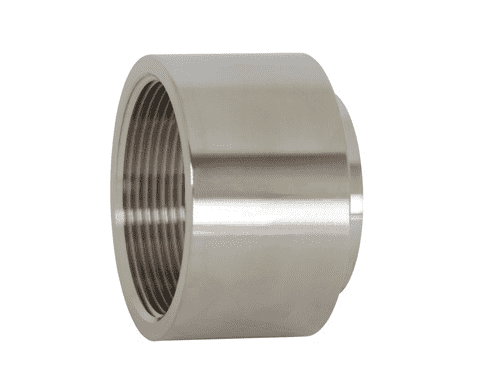

B22WB-G250 Dixon 304 Stainless Steel Sanitary Female NPT x Weld End Adapter - 2-1/2" Tube OD

B22WB-G250 Dixon Valve 304 Stainless Steel Sanitary Female NPT x Weld End Adapter - 2-1/2" Tube OD

Save $25.93 Save $25.93
$64.82
$64.82 - $64.82
$64.82
$38.89
$38.89 - $38.89
$38.89

Dixon Sanitary Fittings Unpolished Weld Adapter - Female NPT x Weld End Adapter
Specifications for Variant SKU: B22WB-G250 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Weld End
Material(s): 304 Stainless Steel
Features:
  • 32Ra finish ID
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions

 Nominal Wall
A B C D
- B22WB-R50 1/2" 1.25" 0.50" 1.16" 0.37" 0.065"
- B22WB-R75 3/4" 1.63" 0.75" 1.48" 0.62" 0.065"
B22WB-G100 B22WB-R100 1" 1.75" 1.00" 1.99" 0.87" 0.065"
B22WB-G150 B22WB-R150 1-1/2" 1.75" 1.50" 2.25" 1.37" 0.065"
B22WB-G200 B22WB-R200 2" 1.81" 2.00" 2.75" 1.87" 0.065"
B22WB-G250 - 2-1/2" 2.31" 2.50" 3.25" 2.37" 0.065"
B22WB-G300 B22WB-R300 3" 2.50" 3.00" 3.96" 2.87" 0.065"
B22WB-G400 B22WB-R400 4" 2.50" 4.00" 4.68" 3.83" 0.083"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
