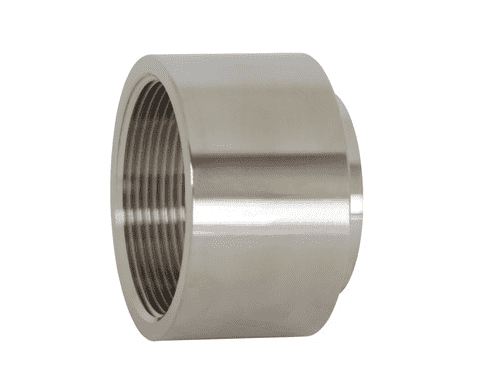

B22WB-R100 Dixon Valve 316L Stainless Steel Sanitary Unpolished Female NPT x Weld End Adapter - 1" Tube OD

B22WB-R100 Dixon Valve 316L Stainless Steel Sanitary Unpolished Female NPT x Weld End Adapter - 1" Tube OD

Save $25.46 Save $25.46
$63.65
$63.65 - $63.65
$63.65
$38.19
$38.19 - $38.19
$38.19

Dixon Sanitary Fittings Unpolished Weld Adapter - Female NPT x Weld End Adapter
Specifications for Variant SKU: B22WB-R100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Weld End
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Features:
  • 32Ra finish ID
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions

 Nominal Wall
A B C D
- B22WB-R50 1/2" 1.25" 0.50" 1.16" 0.37" 0.065"
- B22WB-R75 3/4" 1.63" 0.75" 1.48" 0.62" 0.065"
B22WB-G100 B22WB-R100 1" 1.75" 1.00" 1.99" 0.87" 0.065"
B22WB-G150 B22WB-R150 1-1/2" 1.75" 1.50" 2.25" 1.37" 0.065"
B22WB-G200 B22WB-R200 2" 1.81" 2.00" 2.75" 1.87" 0.065"
B22WB-G250 - 2-1/2" 2.31" 2.50" 3.25" 2.37" 0.065"
B22WB-G300 B22WB-R300 3" 2.50" 3.00" 3.96" 2.87" 0.065"
B22WB-G400 B22WB-R400 4" 2.50" 4.00" 4.68" 3.83" 0.083"
