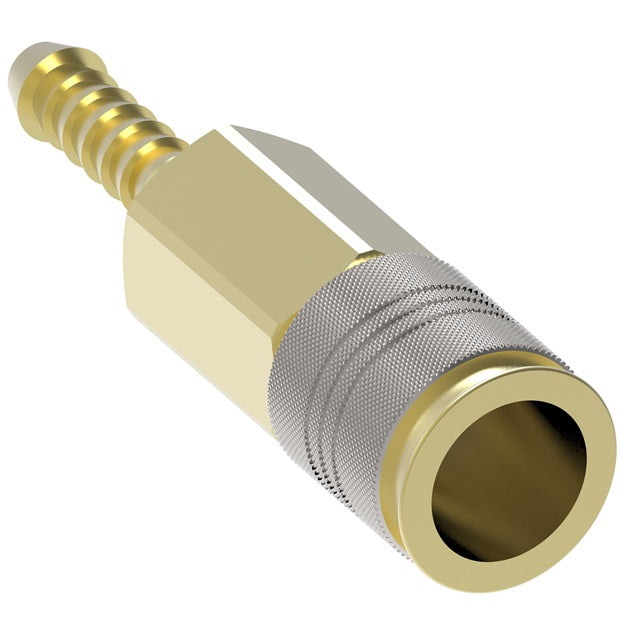

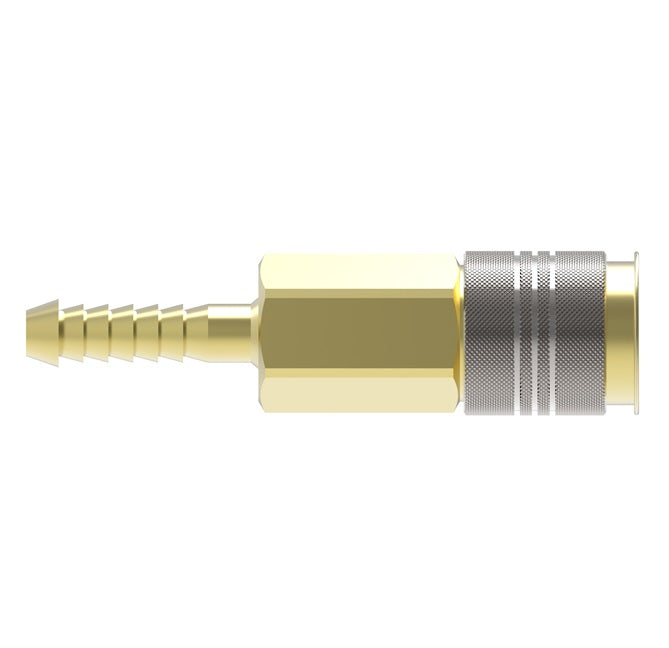

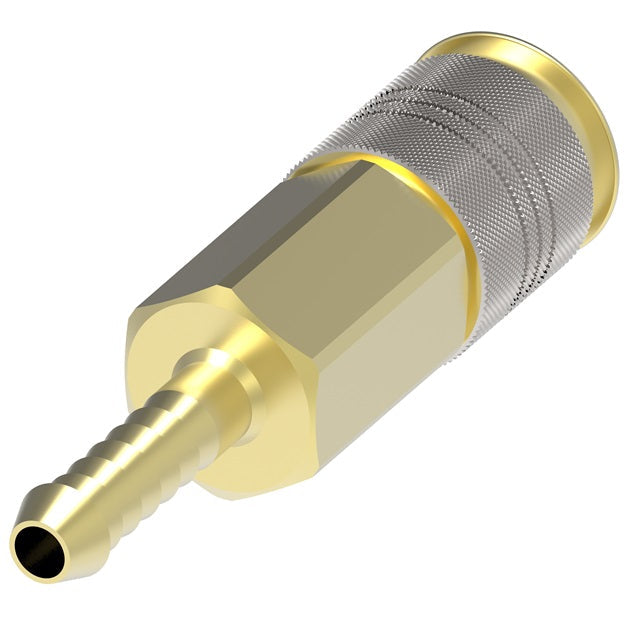

B23AS25H Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Brass

B23AS25H Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series | Hose Barb End | 1/4" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Brass

$20.56 - $20.56

$20.56

$20.56 - $20.56

$20.56

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Auto-Flo 23/24 Series of pneumatic couplings were designed with high flow and easy automatic connection for compressed air in mind.

The universal design makes the Auto-Flo an extremely flexible coupling series.

Quantity

Specifications for Variant SKU: B23AS25H Danfoss
Brand:	Hansen
Series:	Auto-Flo 23 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line. Sleeve guard protects against accidental disconnection.
Applications & Markets:	General Pneumatics Air Tools Construction
Materials:	Standard body material: Brass Standard seal material: Buna-N
Specifications:	Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with Industrial, ARO 210 and Tru-Flate Interchange plugs/males.

Series	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
Auto-Flo 23	10 bar	150 psi	40 bar	600 psi	792 lpm	28 gpm
Auto-Flo 24	10 bar	150 psi	40 bar	600 psi	1,274 lpm	45 gpm

Interchangeability
Auto-Flo 23	Auto-Flo 24
US Industrial Interchange ISO 6150 Series B	(Euro Interchange)
A-A-59439 (former MIL-C-4109)	CEJN 320
Tru-Flate Interchange ARO 210 Interchange	RECTUS 25


Socket/Female (Figure 1)			Plug/Male (Figure 2)		Plug/Male (ARO 210) (Figure 3)		Plug/Male (Tru-Flate) (Figure 4)
Auto-Flo 23 Series \| Sockets
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	A	B
B23AS25H	Socket/Female	1/4"	1/4"	Hose Barb	Brass	1	2.76" (70.10mm)	0.96" (24.38mm)
B23AS31H	Socket/Female	1/4"	5/16"	Hose Barb	Brass	1	2.73" (69.34mm)	0.96" (24.38mm)
B23AS37H	Socket/Female	1/4"	3/8"	Hose Barb	Brass	1	2.73" (69.34mm)	0.96" (24.38mm)
B23AS50H	Socket/Female	1/4"	1/2"	Hose Barb	Brass	1	2.7" (68.58mm)	0.96" (24.38mm)
Auto-Flo 23 Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Material	Figure	A	B
16	Plug/Male	1/4"	1/4"	Hose Barb	Steel	2	2.22" (56.39mm)	0.50" (12.70mm)
16P	Plug/Male	1/4"	1/4"	Push-On Hose Barb	Steel	2	2.00" (50.80mm)	0.58" (14.73mm)
17	Plug/Male	1/4"	3/8"	Hose Barb	Steel	2	2.22" (56.39mm)	0.50" (12.70mm)
17P	Plug/Male	1/4"	3/8"	Push-On Hose Barb	Steel	2	2.06" (52.32mm)	0.50" (12.70mm)
18E	Plug/Male	1/4"	5/16"	Hose Barb	Steel	2	2.22" (56.39mm)	0.50" (12.70mm)
B17	Plug/Male	1/4"	3/8"	Hose Barb	Brass	2	2.22" (56.39mm)	0.50" (12.70mm)
3946	Plug/Male	1/4"	1/4"	Hose Barb	Steel	3	2.14" (54.36mm)	0.50" (12.70mm)
3947	Plug/Male	1/4"	5/16"	Hose Barb	Steel	3	2.14" (54.36mm)	0.5" (12.70mm)
22238E	Plug/Male	1/4"	3/8"	Hose Barb	Steel	3	2.14" (54.36mm)	0.50" (12.70mm)

** With Bleeder Ball Check - Reduces Hose Whip
