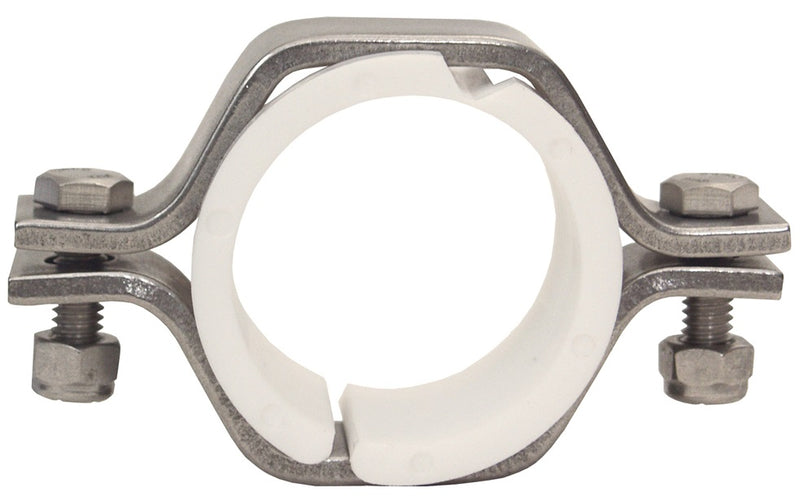

B24PS-G250 Dixon Valve | Sanitary Hex Tube Hanger | with Polypropylene Sleeve | 2-1/2" Tube OD | 304 Stainless Steel

B24PS-G250 Dixon Valve | Sanitary Hex Tube Hanger | with Polypropylene Sleeve | 2-1/2" Tube OD | 304 Stainless Steel

Save $6.85 Save $6.85
$17.13
$17.13 - $17.13
$17.13
$10.28
$10.28 - $10.28
$10.28

Dixon Sanitary Fittings Sanitary Tube Hanger - Hex Tube Hanger with Polypropylene Sleeve - 304 Stainless Steel

Maximum temperature: 225°F (107°C)
Specifications for Variant SKU: B24PS-G250 Dixon
Materials:
  • 304 Stainless Steel Hanger.
  • Polypropylene sleeve.
Specifications:
  • Polypropylene sleeve maximum temperature: 225°F (107°C)
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Dimensions
Weight (Lbs.)
A B
B24PS-G50 1/2" 2.800" 1.150" 0.1950
B24PS-G75 3/4" 2.800" 1.150" 0.2200
B24PS-G100 1" 3.425" 1.450" 0.3800
B24PS-G150 1-1/2" 4.000" 2.125" 0.4600
B24PS-G200 2" 4.500" 2.500" 0.5420
B24PS-G250 2-1/2" 4.950" 3.125" 0.6430
B24PS-G300 3" 5.500" 3.750" 0.7400
B24PS-G400 4" 6.950" 4.750" 1.0000
B24PS-G500 5" 8.063" 5.625" 1.0000
B24PS-G600 6" 9.250" 6.625" 1.2950
B24PS-G800 8" 11.500" 8.625" 1.7200
B24PS-G1000 10" - - -
B24PS-G1200 12" - - -
