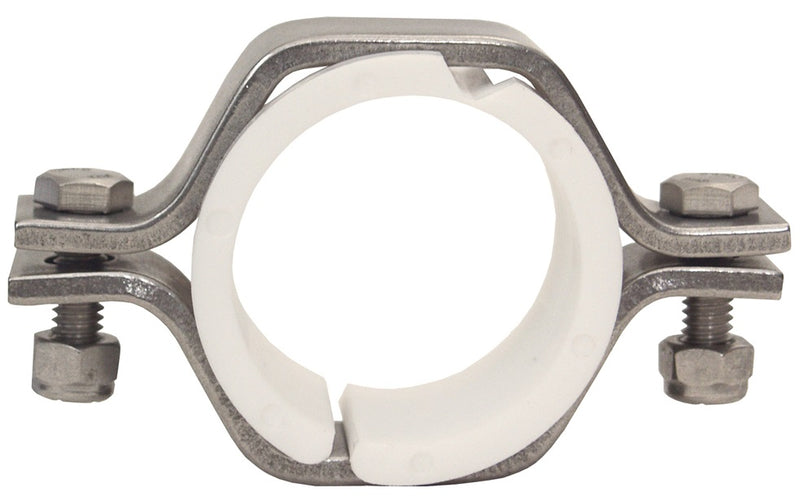

B24PS-G800 Dixon Valve | Sanitary Hex Tube Hanger | with Polypropylene Sleeve | 8" Tube OD | 304 Stainless Steel

Name: B24PS-G800 Dixon Valve | Sanitary Hex Tube Hanger | with Polypropylene Sleeve | 8" Tube OD | 304 Stainless Steel
Brand: Dixon
SKU: B24PS-G800 Dixon
Price: 89.49 USD
Availability: InStock

Save $59.66

$149.15

$149.15 - $149.15

$149.15

$89.49

$89.49 - $89.49

$89.49

Dixon Sanitary Fittings Sanitary Tube Hanger - Hex Tube Hanger with Polypropylene Sleeve - 304 Stainless Steel

Maximum temperature: 225°F (107°C)

Quantity

Specifications for Variant SKU: B24PS-G800 Dixon

Materials:
304 Stainless Steel Hanger. Polypropylene sleeve.
Specifications:
Polypropylene sleeve maximum temperature: 225°F (107°C)
Installation:
Straight sections need support every 10 ft. Each side of every valve (as close as possible to the connection) needs support. Support each change of directions.

Part Number	Tube OD	Dimensions		Weight (Lbs.)
Part Number	Tube OD	A	B	Weight (Lbs.)
B24PS-G50	1/2"	2.800"	1.150"	0.1950
B24PS-G75	3/4"	2.800"	1.150"	0.2200
B24PS-G100	1"	3.425"	1.450"	0.3800
B24PS-G150	1-1/2"	4.000"	2.125"	0.4600
B24PS-G200	2"	4.500"	2.500"	0.5420
B24PS-G250	2-1/2"	4.950"	3.125"	0.6430
B24PS-G300	3"	5.500"	3.750"	0.7400
B24PS-G400	4"	6.950"	4.750"	1.0000
B24PS-G500	5"	8.063"	5.625"	1.0000
B24PS-G600	6"	9.250"	6.625"	1.2950
B24PS-G800	8"	11.500"	8.625"	1.7200
B24PS-G1000	10"	-	-	-
B24PS-G1200	12"	-	-	-
