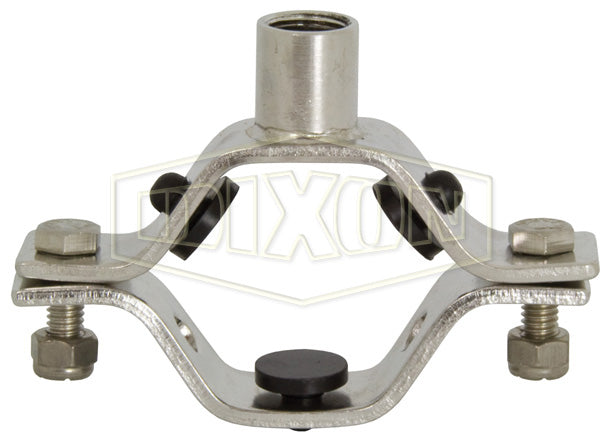

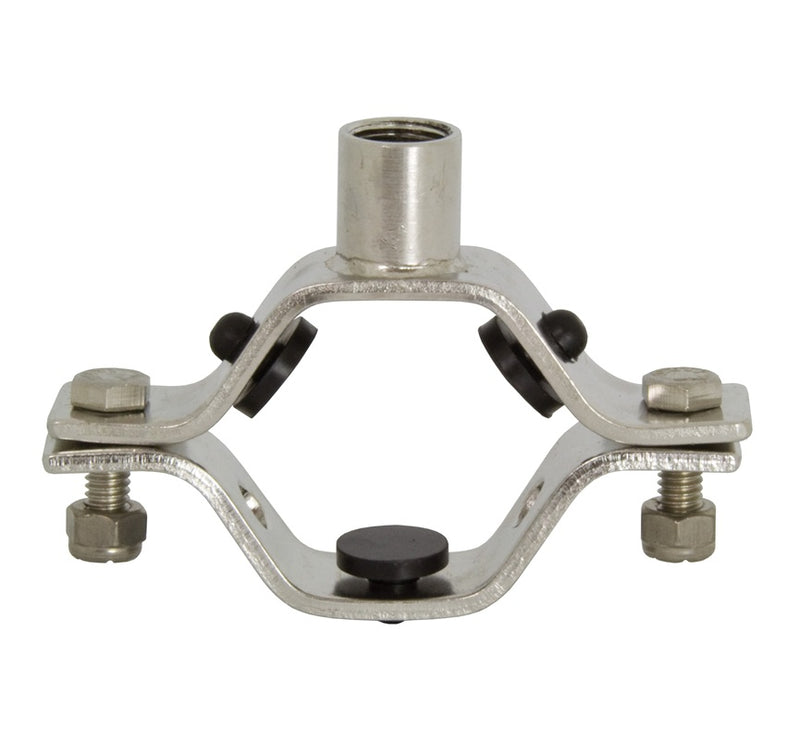

B24RGC16-G300 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets & All Thread Coupler - 3" Tube OD

B24RGC16-G300 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets & All Thread Coupler - 3" Tube OD

Save $17.39 Save $17.39
$43.48
$43.48 - $43.48
$43.48
$26.09
$26.09 - $26.09
$26.09

Dixon Sanitary Fittings Sanitary Hex Hanger with Nitrile Grommets and All Thread Coupler - 304 Stainless Steel

Max temperature: 230°F (110°C)
Specifications for Variant SKU: B24RGC16-G300 Dixon
Features:
  • Coupler is all thread 3/8-16
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Weight (Lbs.)
B24RGC16-G75 3/4" 0.4850
B24RGC16-G100 1" 0.4700
B24RGC16-G150 1-1/2" 0.5550
B24RGC16-G200 2" 0.3590
B24RGC16-G250 2-1/2" 0.7200
B24RGC16-G300 3" 0.8500
B24RGC16-G400 4" 0.9950
B24RGC16-G600 6" -
B24RGC16-G800 8" -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
