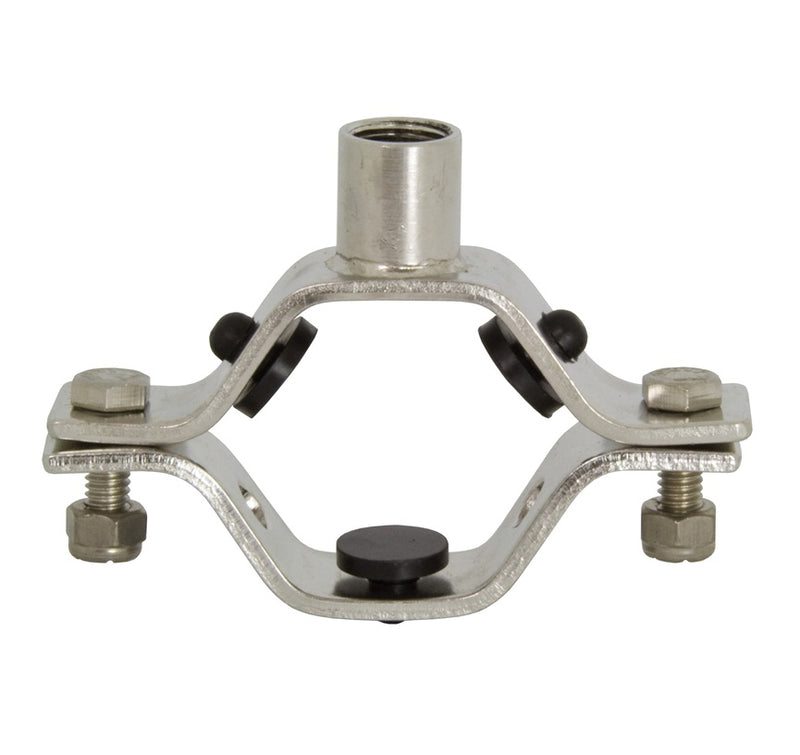

B24RGC16-G400 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets & All Thread Coupler - 4" Tube OD

B24RGC16-G400 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets & All Thread Coupler - 4" Tube OD

Save $5.90 Save $5.90
$34.29
$34.29 - $34.29
$34.29
$28.39
$28.39 - $28.39
$28.39

Dixon Sanitary Fittings Sanitary Hex Hanger with Nitrile Grommets and All Thread Coupler - 304 Stainless Steel

Max temperature: 230°F (110°C)
Specifications for Variant SKU: B24RGC16-G400 Dixon
Features:
  • Coupler is all thread 3/8-16
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Weight (Lbs.)
B24RGC16-G75 3/4" 0.4850
B24RGC16-G100 1" 0.4700
B24RGC16-G150 1-1/2" 0.5550
B24RGC16-G200 2" 0.3590
B24RGC16-G250 2-1/2" 0.7200
B24RGC16-G300 3" 0.8500
B24RGC16-G400 4" 0.9950
B24RGC16-G600 6" -
B24RGC16-G800 8" -
