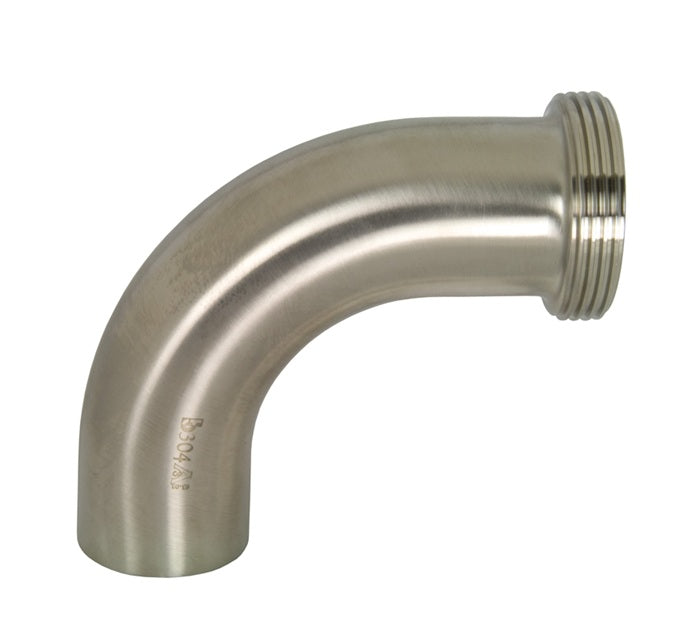

B2T-G200 Dixon Valve 304 Stainless Steel Sanitary Threaded Bevel Seat x Weld 90° Elbow - 2" Tube OD

Save $8.22 Save $8.22
Original price $73.98
Original price $73.98 - Original price $73.98
Original price $73.98
Current price $65.76
$65.76 - $65.76
Current price $65.76

Dixon Sanitary Fittings Sanitary Bevel Seat Elbow - Sanitary Threaded Bevel Seat x Weld 90° Elbow - 304 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B2T-G200 Dixon
Shape (Orientation): 90 Degree
Material(s): 304 Stainless Steel
Material:
  • 3A sanitary finish ID and OD
  • Finish: Polished
Part Number Tube OD Wall Thickness Dimensions

Weight (Lbs.)
A B R OD ID
B2T-G100 1" 0.065" 2.06" 2.78" 1.50" 1.00" 0.87" 1.0000
B2T-G200 2" 0.065" 4.06" 4.81" 3.00" 2.00" 1.87" 1.0700
B2T-G300 3" 0.065" 6.31" 7.22" 4.50" 3.00" 2.87" 2.0000
B2T-G400 4" 0.083" 8.31" 9.34" 6.00" 4.00" 3.83" 4.9150
