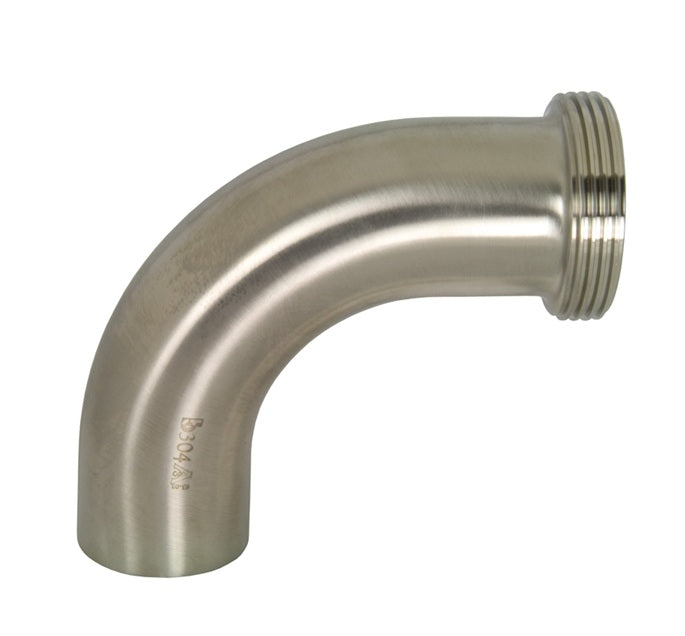

B2T-G300 Dixon Valve 304 Stainless Steel Sanitary Threaded Bevel Seat x Weld 90° Elbow - 3" Tube OD

B2T-G300 Dixon Valve 304 Stainless Steel Sanitary Threaded Bevel Seat x Weld 90° Elbow - 3" Tube OD

Save $76.31 Save $76.31
$190.78
$190.78 - $190.78
$190.78
$114.47
$114.47 - $114.47
$114.47

Dixon Sanitary Fittings Sanitary Bevel Seat Elbow - Sanitary Threaded Bevel Seat x Weld 90° Elbow - 304 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2T-G300 Dixon
Shape (Orientation): 90 Degree
Material(s): 304 Stainless Steel
Material:
  • 3A sanitary finish ID and OD
  • Finish: Polished
Part Number Tube OD Wall Thickness Dimensions

Weight (Lbs.)
A B R OD ID
B2T-G100 1" 0.065" 2.06" 2.78" 1.50" 1.00" 0.87" 1.0000
B2T-G200 2" 0.065" 4.06" 4.81" 3.00" 2.00" 1.87" 1.0700
B2T-G300 3" 0.065" 6.31" 7.22" 4.50" 3.00" 2.87" 2.0000
B2T-G400 4" 0.083" 8.31" 9.34" 6.00" 4.00" 3.83" 4.9150
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
