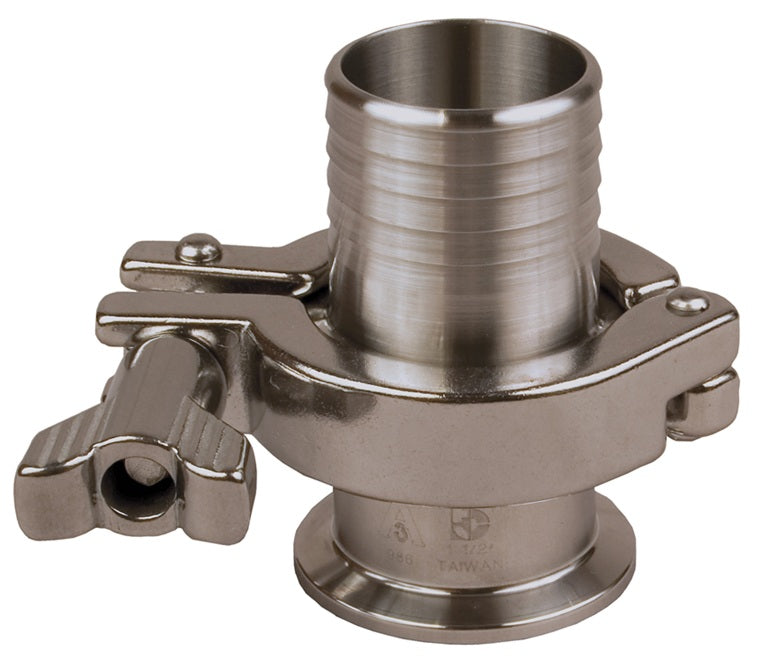

B45CC-R100150 Dixon Valve 1" - 1-1/2" 316L Stainless Steel Sanitary Air Blow Check Valve - Hose Barb

Name: B45CC-R100150 Dixon Valve 1" - 1-1/2" 316L Stainless Steel Sanitary Air Blow Check Valve - Hose Barb
Brand: Dixon
SKU: B45CC-R100150 Dixon
Price: 142.05 USD
Availability: InStock

Save $17.76

$159.81

$159.81 - $159.81

$159.81

$142.05

$142.05 - $142.05

$142.05

Dixon Sanitary Valves - Air Blow Check Valves - Hose Barb - 316L Stainless Steel

Quantity

Specifications for Variant SKU: B45CC-R100150 Dixon
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	EPDM

Application:
The air blow check valve is designed to pressurize lines with air to clean out product or cleaning solutions. It is fail-safe because the simple air-to-open, spring-to-close mechanism prevents backflow. Can be used with a check valve.
Features:
EPDM seat and gasket. Maximum operating temperature: 212 deg. F. Maximum operating pressure: 145 PSI. 3A authorized 58-00.

When using air blow check valves with ball check valves, refer to the sizing chart below:

Ball Check Valve Size	Air Blow Check Valve Size
1-1/2"	2"
2"	2-1/2"
2-1/2"	3"
3"	4"

Part Number	Size	End Type	Dimensions			Seat	Weight (Lbs.)
		A	B	C
B45CC-R100150	1" - 1-1/2"	1" Hose Barb	1.984"	1.300"	1.70"	EPDM	1.5200
B45CC-R200	2"	1" Hose Barb	2.516"	1.300"	1.70"	EPDM	3.1750
B45CC-R250	2-1/2"	1" Hose Barb	3.047"	1.300"	1.70"	EPDM	1.7900
B45CC-R300	3"	1" Hose Barb	3.579"	1.300"	1.70"	EPDM	1.9100
B45CC-R400	4"	1" Hose Barb	4.682"	1.300"	1.70"	EPDM	2.8000
