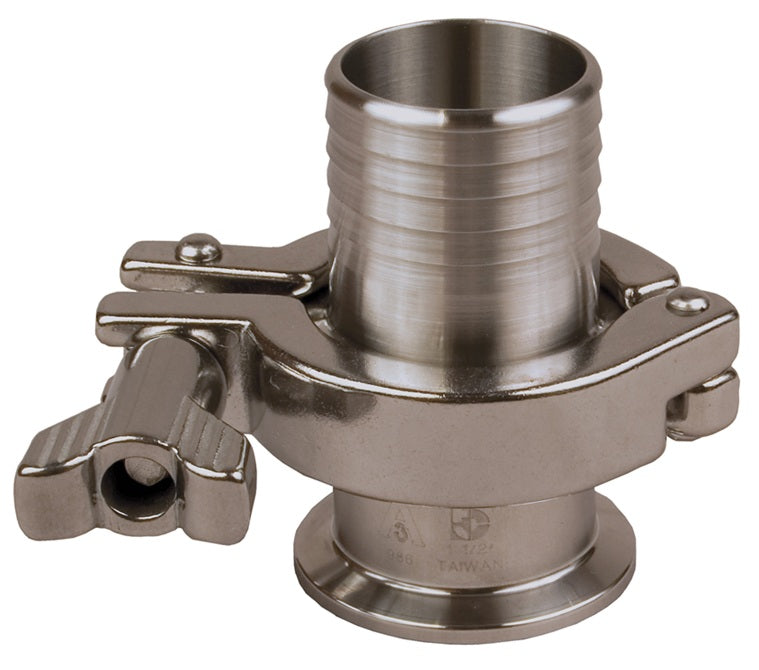

B45CC-R250 Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Air Blow Check Valve - Hose Barb

B45CC-R250 Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Air Blow Check Valve - Hose Barb

Save $132.29 Save $132.29
$330.72
$330.72 - $330.72
$330.72
$198.43
$198.43 - $198.43
$198.43

Dixon Sanitary Valves - Air Blow Check Valves - Hose Barb - 316L Stainless Steel
Specifications for Variant SKU: B45CC-R250 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Application:
  • The air blow check valve is designed to pressurize lines with air to clean out product or cleaning solutions. It is fail-safe because the simple air-to-open, spring-to-close mechanism prevents backflow. Can be used with a check valve.
Features:
  • EPDM seat and gasket.
  • Maximum operating temperature: 212 deg. F.
  • Maximum operating pressure: 145 PSI.
  • 3A authorized 58-00.

When using air blow check valves with ball check valves, refer to the sizing chart below:

Ball Check Valve Size Air Blow Check Valve Size
1-1/2" 2"
2" 2-1/2"
2-1/2" 3"
3" 4"
Part Number Size End Type Dimensions
Seat Weight (Lbs.)
A B C
B45CC-R100150 1" - 1-1/2" 1" Hose Barb 1.984" 1.300" 1.70" EPDM 1.5200
B45CC-R200 2" 1" Hose Barb 2.516" 1.300" 1.70" EPDM 3.1750
B45CC-R250 2-1/2" 1" Hose Barb 3.047" 1.300" 1.70" EPDM 1.7900
B45CC-R300 3" 1" Hose Barb 3.579" 1.300" 1.70" EPDM 1.9100
B45CC-R400 4" 1" Hose Barb 4.682" 1.300" 1.70" EPDM 2.8000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
