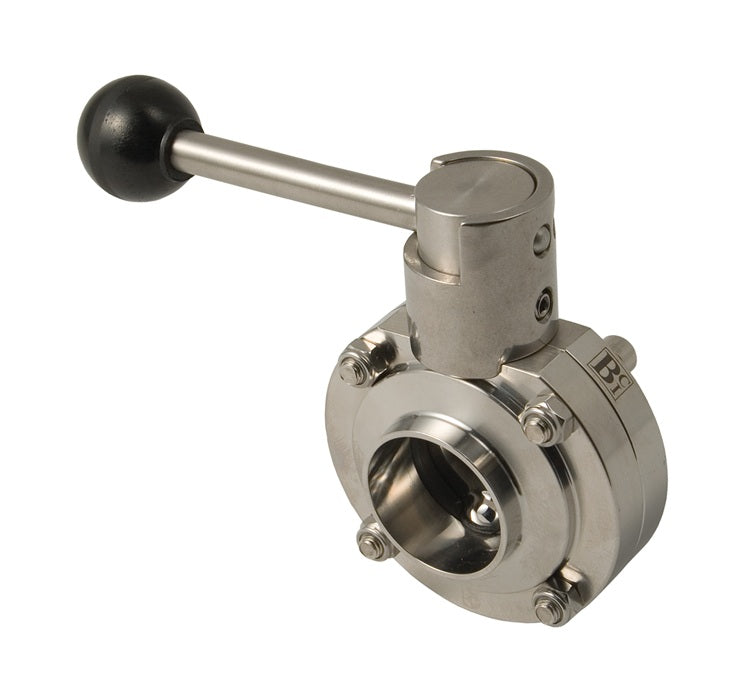

B5101E100BB-A Dixon Valve 1" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Pull Handle - EPDM Seats

B5101E100BB-A Dixon Valve 1" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Pull Handle - EPDM Seats

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Weld End Butterfly Valve with Pull Handle - [A] - 316L Stainless Steel with EPDM Seats
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B5101E100BB-A Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • All wetted surfaces are sanitary finished to < 32Ra
  • Low resistance to flow.
  • Bi-directions flow.
  • Gentle to media.
  • Suitable for low and medium viscosity fluids.
  • Can be serviced in the field.
  • Self-draining.
  • Optional wing nut kit is available for easy assembly and disassembly.
  • 100% hydraulic tested / 100% inspected.
Materials:
  • Body and Disc: 316L Stainless Steel
  • Seat: EPDM
Specifications:
  • Vacuum Rating: 0.4 inches Hg at 68°F (20°C)
  • Operating Temperature Range: 15°F to 200°F (-9°C to 93°C)
Notes:
  • Not for use with bolted clamps.
  • Handle is not assembled when shipped.
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C.
Part Number Size Dimensions

 Weight (Lbs.)
A B C D E F G
B5101E050BB-A 1/2" 4.4" 2.6" 1.4" 0.9" 1.9" 0.37" 3.1" 1.4800
B5101E075BB-A 3/4" 4.4" 2.6" 1.4" 0.9" 1.9" 0.62" 3.1" 1.5000
B5101E100BB-A 1" 4.4" 2.6" 1.4" 0.9" 1.9" 0.87" 3.1" 2.5000
B5101E250BB-A 2-1/2" 4.4" 3.5" 1.4" 0.9" 2.1" 2.37" 4.6" 3.9600
B5101E300BB-A 3" 6.2" 3.8" 1.3" 1.2" 2.5" 2.87" 5.2" 6.3000
B5107E800BB-A 8" 18.0" 6.9" 1.6" 1.2" 4.9" 7.76" 11.2" -
