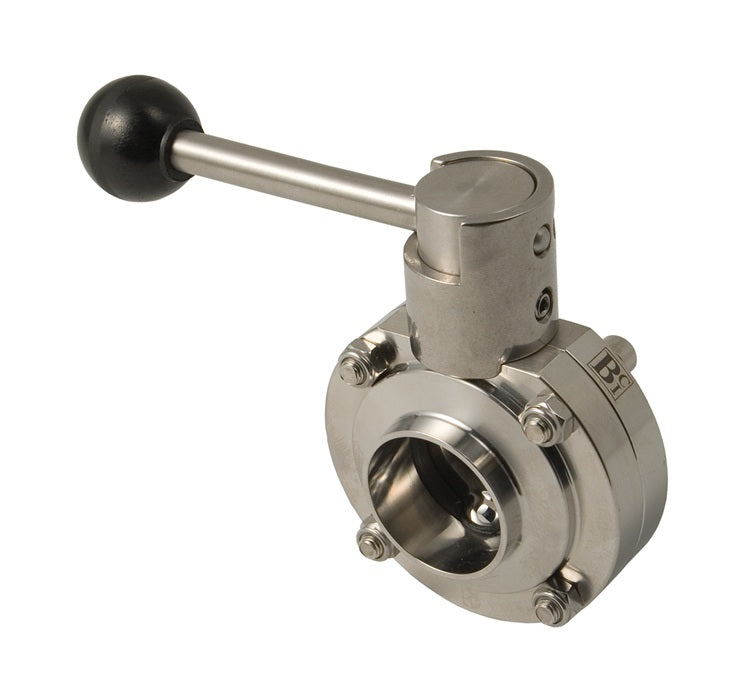

B5101E250BB-A Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Pull Handle - EPDM Seats

B5101E250BB-A Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Weld End Butterfly Valve - Pull Handle - EPDM Seats

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Weld End Butterfly Valve with Pull Handle - [A] | 316L Stainless Steel | EPDM Seats

All wetted surfaces are sanitary finished to < 32Ra.

Suitable for low and medium viscosity fluids.
Specifications for Variant SKU: B5101E250BB-A Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • All wetted surfaces are sanitary finished to < 32Ra
  • Low resistance to flow.
  • Bi-directions flow.
  • Gentle to media.
  • Suitable for low and medium viscosity fluids.
  • Can be serviced in the field.
  • Self-draining.
  • Optional wing nut kit is available for easy assembly and disassembly.
  • 100% hydraulic tested / 100% inspected.
Materials:
  • Body and Disc: 316L Stainless Steel
  • Seat: EPDM
Specifications:
  • Vacuum Rating: 0.4 inches Hg at 68°F (20°C)
  • Operating Temperature Range: 15°F to 200°F (-9°C to 93°C)
Notes:
  • Not for use with bolted clamps.
  • Handle is not assembled when shipped.
  • Pressure rating (PSI), Flow Coefficient (CV) and Break Torque (in. lbs.) information supplied is based on water media at 68°F / 20°C.
Part Number Size Dimensions

 Weight (Lbs.)
A B C D E F G
B5101E050BB-A 1/2" 4.4" 2.6" 1.4" 0.9" 1.9" 0.37" 3.1" 1.4800
B5101E075BB-A 3/4" 4.4" 2.6" 1.4" 0.9" 1.9" 0.62" 3.1" 1.5000
B5101E100BB-A 1" 4.4" 2.6" 1.4" 0.9" 1.9" 0.87" 3.1" 2.5000
B5101E250BB-A 2-1/2" 4.4" 3.5" 1.4" 0.9" 2.1" 2.37" 4.6" 3.9600
B5101E300BB-A 3" 6.2" 3.8" 1.3" 1.2" 2.5" 2.87" 5.2" 6.3000
B5107E800BB-A 8" 18.0" 6.9" 1.6" 1.2" 4.9" 7.76" 11.2" -
