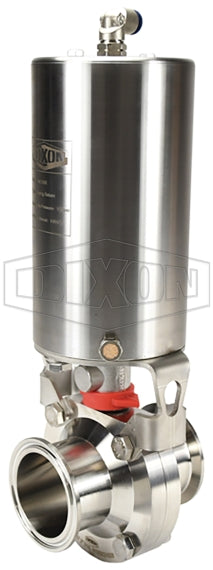

B5107E050CCG Dixon Valve 1/2" Butterfly Valve - Clamp x Clamp - Vertical Spring Return (Normally Closed) Pneumatic Canister Style Actuator - EPDM Seats (Replaces: B5101E050CC-G)

B5107E050CCG Dixon Valve 1/2" Butterfly Valve - Clamp x Clamp - Vertical Spring Return (Normally Closed) Pneumatic Canister Style Actuator - EPDM Seats (Replaces: B5101E050CC-G)

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Valves
Butterfly Valve Automation - Clamp x Clamp - 316L Stainless Steel
Vertical Spring Return (Normally Closed) Pneumatic Canister Style Actuator

B5107E050CCG Replaces Part Number: B5101E050CC-G

Shipped fully assembled, including pneumatic actuator and mounting bracket assembly
Specifications for Variant SKU: B5107E050CCG Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel, 304 Stainless Steel
Seal Material(s): EPDM
Note:
  • Not for use with bolted clamps.

Dimensions
Silicone
Part Number		 EPDM
Part Number		 FKM
Part Number		 Valve Size A B C D E F G H
- B5107E050CCG - 1/2" 3.5" 3.1" 2.7" 8.7" 9.6" 3.4" 4.0" 14.7"
- B5107E075CCG - 3/4" 3.5" 3.1" 2.7" 8.7" 9.6" 3.4" 4.0" 14.7"
B5107S100CCG B5107E100CCG B5107V100CCG 1" 3.5" 3.1" 2.7" 8.7" 9.6" 3.4" 4.0" 14.7"
- B5107E250CCG - 2-1/2" 3.8" 4.6" 3.5" 9.5" 10.4" 3.4" 4.0" 15.5"
