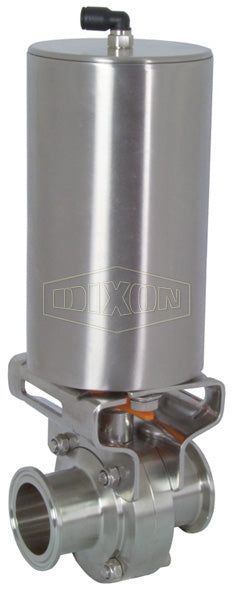

B5107V100CCG Dixon Valve 1" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Vertical Canister Actuation - Normally Closed - FKM Seats (Replaces: B5101V100CC-G)

Save $69.14 Save $69.14
Original price $622.23
Original price $622.23 - Original price $622.23
Original price $622.23
Current price $553.09
$553.09 - $553.09
Current price $553.09

Dixon Sanitary Valves
Butterfly Valve Automation - Clamp x Clamp - 316L Stainless Steel
Vertical Spring Return (Normally Closed) Pneumatic Canister Style Actuator

B5107V100CCG Replaces Part Number: B5101V100CC-G

Shipped fully assembled, including pneumatic actuator and mounting bracket assembly

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B5107V100CCG Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM
Note:
  • Not for use with bolted clamps.

Dimensions
Silicone
Part Number
EPDM
Part Number
FKM
Part Number
Valve Size A B C D E F G H
- B5107E050CCG - 1/2" 3.5" 3.1" 2.7" 8.7" 9.6" 3.4" 4.0" 14.7"
- B5107E075CCG - 3/4" 3.5" 3.1" 2.7" 8.7" 9.6" 3.4" 4.0" 14.7"
B5107S100CCG B5107E100CCG B5107V100CCG 1" 3.5" 3.1" 2.7" 8.7" 9.6" 3.4" 4.0" 14.7"
- B5107E250CCG - 2-1/2" 3.8" 4.6" 3.5" 9.5" 10.4" 3.4" 4.0" 15.5"
