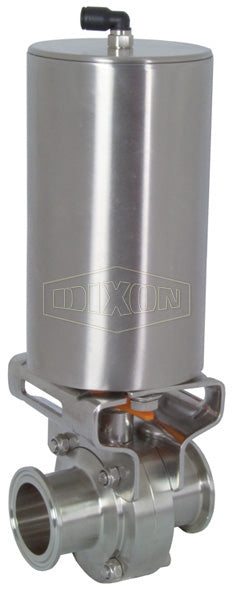

B5107E250CCG Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Vertical Canister Actuation - Normally Closed - EPDM Seats (Replaces: B5101E250CC-G)

Name: B5107E250CCG Dixon Valve 2-1/2" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Vertical Canister Actuation - Normally Closed - EPDM Seats (Replaces: B5101E250CC-G)
Brand: Dixon
SKU: B5107E250CCG Dixon
Price: 781.76 USD
Availability: InStock

Save $521.17

$1,302.93

$1,302.93 - $1,302.93

$1,302.93

$781.76

$781.76 - $781.76

$781.76

Dixon Sanitary Valves
Butterfly Valve Automation - Clamp x Clamp - 316L Stainless Steel
Vertical Spring Return (Normally Closed) Pneumatic Canister Style Actuator

B5107E250CCG Replaces Part Number: B5101E250CC-G

Shipped fully assembled, including pneumatic actuator and mounting bracket assembly

Specifications for Variant SKU: B5107E250CCG Dixon
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel
Seal Material(s):	EPDM

Note:
Not for use with bolted clamps.

				Dimensions
Silicone Part Number	EPDM Part Number	FKM Part Number	Valve Size	A	B	C	D	E	F	G	H
-	B5107E050CCG	-	1/2"	3.5"	3.1"	2.7"	8.7"	9.6"	3.4"	4.0"	14.7"
-	B5107E075CCG	-	3/4"	3.5"	3.1"	2.7"	8.7"	9.6"	3.4"	4.0"	14.7"
B5107S100CCG	B5107E100CCG	B5107V100CCG	1"	3.5"	3.1"	2.7"	8.7"	9.6"	3.4"	4.0"	14.7"
-	B5107E250CCG	-	2-1/2"	3.8"	4.6"	3.5"	9.5"	10.4"	3.4"	4.0"	15.5"
