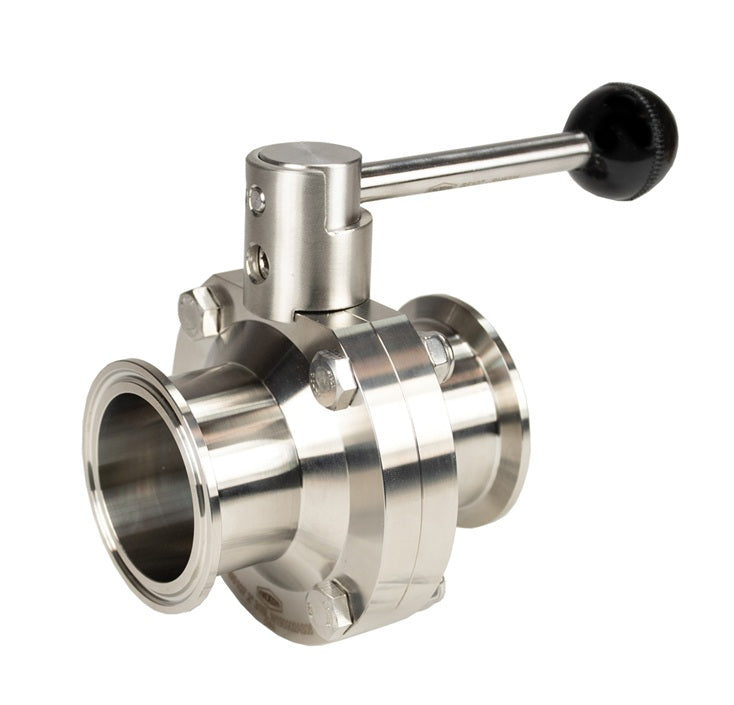

B5107E600CC-A Dixon Valve 6" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Pull Handle - EPDM Seats

B5107E600CC-A Dixon Valve 6" 316L Stainless Steel Sanitary Clamp End Butterfly Valve - Pull Handle - EPDM Seats

$0.00 - $0.00
$0.00
$1,238.59
$1,238.59 - $1,238.59
$1,238.59

Dixon Sanitary Valves
Clamp End Butterfly Valve with Pull Handle [A] - 316L Stainless Steel with EPDM Seats
Specifications for Variant SKU: B5107E600CC-A Dixon
Shape (Orientation): Straight
Ends Configuration: 6in Sanitary Clamp End, 6in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Features:
  • Hex head body bolts eliminate the recessed cavity found in socket head body bolts, reducing the potential for bacterial buildup. Sizes 1/2" to 4".
  • Body design enhances the exterior cleanability and drainability of the valve by utilizing a large machined chamfer between the flange face and the tube OD.
  • New EPDM with self-lubricating properties and silicone rubber help to reduce break torque and provide added durability to valve seats. Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification.
  • Increased disc stem square size provides added durability when higher torques are experienced due to viscous or sticky process fluids.
  • Coupler design eliminates the need for the roll pin to connect to the actuator, saving time during assembly. Additionally, sensing targets are incorporated into the coupler meaning no extra accessories are needed when adding external proximity sensors.
  • Actuator design allows for a control top to be added to any standard actuator in the field without the need to change the actuator.
  • Single piece bracket makes assembly fast and easy compared to two-piece designs.
  • Sensors can easily be added to any actuated valve without the need to purchase additional mounting hardware.
  • Not for use with bolted clamps.
  • 100% hydraulic tested / 100% inspected.
  • Field serviceable (no special tools required).
Materials:
  • Product contact components (body and disc): forged 316L stainless steel.
Sealing Material:
  • EPDM for valve sizes 1/2" to 4" have USP VI Certification.
  • NOTE: 6" and 8" valves only available with EPDM and silicone.
  • Non-product contact components (bushings): polyacetal.
Line Pressure:
  • Max product line pressure:
    • 1/2" to 2": 140 PSI
    • 2-1/2" to 3": 110 PSI
    • 4": 85 PSI
    • 6" to 8": 60 PSI
  • Minimum product line pressure: 0.4" Hg vacuum at 68°F (20°C)
Temperature:
  • Minimum/Maximum Operating Temperature: 32°F to 200°F (0°C to 93°C)
Surface Finish:
  • Product contact components: Ra ≤ 32
Pneumatic Connections Technical Data (linear actuator):
  • Threaded air fitting size: G1/8"
  • Air connection hose size: 1/4" flexible poly tubing
  • Max supply air pressure: 100 PSI (6.9 bar)
  • Minimum supply air pressure: 80 PSI (5.5 bar)
Valve Stem Square Size:
  • 1/2" to 4": 10mm
  • 6": 13mm
  • 8": 14mm
Part Number Size Break Torque Flow Coefficient
B5107E050CC-A 1/2" 75 in. lbs. 7 CV
B5107E075CC-A 3/4" 75 in. lbs. 11 CV
B5107E100CC-A 1" 75 in. lbs. 23 CV
B5107E150CC-A 1-1/2" 130 in. lbs. 80 CV
B5107E200CC-A 2" 165 in. lbs. 230 CV
B5107E250CC-A 2-1/2" 210 in. lbs. 264 CV
B5107E300CC-A 3" 350 in. lbs. 372 CV
B5107E400CC-A 4" 540 in. lbs. 800 CV
B5107E600CC-A 6" 1550 in. lbs. 1200 CV
