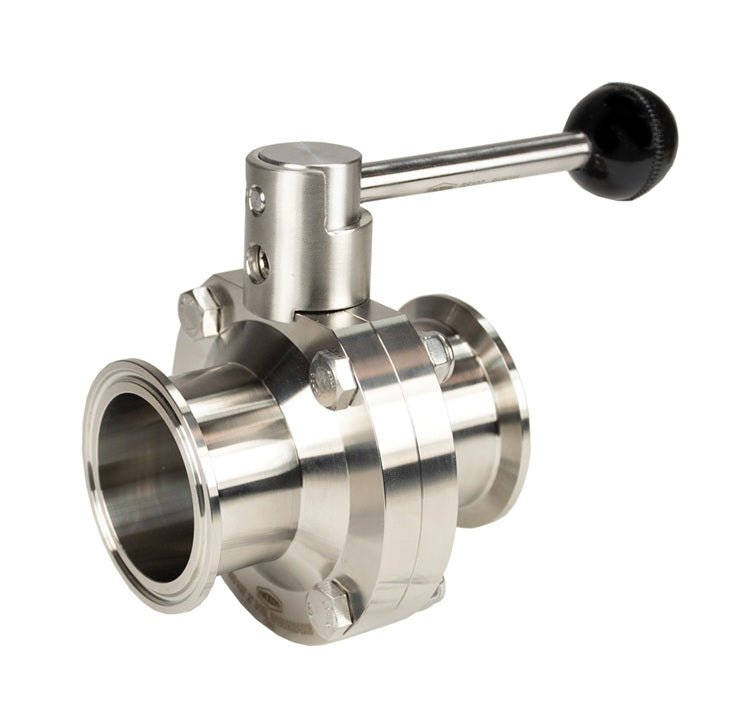

B5107E800CC-A Dixon Valve 8" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and EPDM Seats

Name: B5107E800CC-A Dixon Valve 8" 316L Stainless Steel Sanitary Clamp End Butterfly Valve with Pull Handle and EPDM Seats
Brand: Dixon
SKU: B5107E800CC-A Dixon
Price: 2853.41 USD
Availability: InStock

Save $1,902.27

$4,755.68

$4,755.68 - $4,755.68

$4,755.68

$2,853.41

$2,853.41 - $2,853.41

$2,853.41

Dixon Sanitary Valves
Clamp End Butterfly Valve with Pull Handle - [A] | 316L Stainless Steel with EPDM Seats

Specifications for Variant SKU: B5107E800CC-A Dixon
Shape (Orientation):	Straight
Ends Configuration:	8in Sanitary Clamp End, 8in Sanitary Clamp End, Some Ends Match
Material(s):	316L Stainless Steel
Seal Material(s):	EPDM

Features:
Robust disc stem. Bi-directional flow. Self lubricating seal. Silicone and EPDM for valve sizes 1/2" to 4" have USP VI certification. 100% hydraulic tested/inspected.
Materials:
Product contact material: 316L stainless steel. Seat: EPDM. Seat lubricant: MOLYKOTE® 111.
Sealing Material:
Vacuum rating: 0.4 inches Hg at 68°F (20°C). Operating temperature range: 15°F to 200°F (-9°C to 93°C).

Part Number	Size	Dimensions
Part Number	Size	A (in)	B (in)	C (in)	D (in)	E (in)
B5107E050CC-A	1/2"	3.50"	0.90"	3.10"	2.60"	4.60"
B5107E075CC-A	3/4"	3.50"	0.90"	3.10"	2.60"	4.60"
B5107E100CC-A	1"	3.50"	0.90"	3.10"	2.60"	4.60"
B5107E150CC-A	1-1/2"	3.50"	0.90"	3.10"	2.60"	4.60"
B5107E200CC-A	2"	3.80"	0.90"	3.90"	3.00"	4.60"
B5107E250CC-A	2-1/2"	3.80"	0.90"	4.60"	3.40"	4.60"
B5107E300CC-A	3"	4.10"	1.20"	5.20"	3.50"	6.50"
B5107E400CC-A	4"	4.80"	1.20"	6.70"	4.30"	6.50"
B5107E600CC-A	6"	5.50"	1.20"	8.50"	5.60"	11.70"
B5107E800CC-A	8"	5.00"	1.20"	11.20"	7.80"	18.10"
