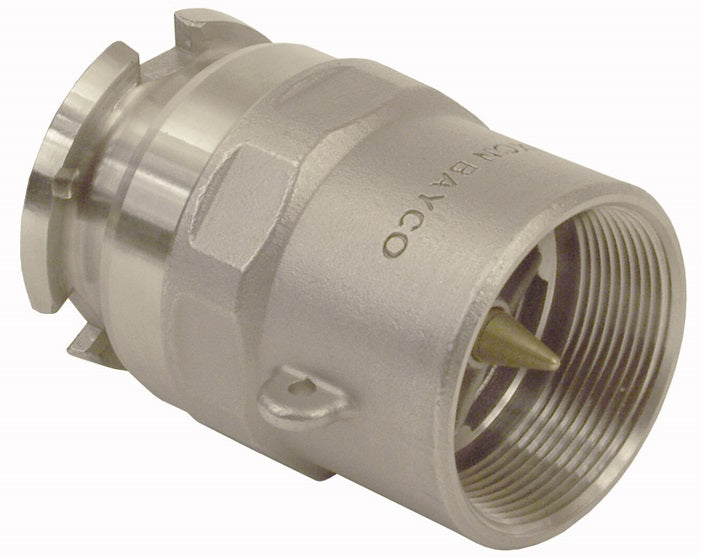

BA32-200 by Dixon Valve | Dry Disconnect | Bayonet Style | 2" Size | Adapter x Female NPT | FKM Seal | Stainless Steel

BA32-200 by Dixon Valve | Dry Disconnect | Bayonet Style | 2" Size | Adapter x Female NPT | FKM Seal | Stainless Steel

Save $17.56 Save $17.56
$171.03
$171.03 - $171.03
$171.03
$153.47
$153.47 - $153.47
$153.47

Dixon Valve
Dry Disconnect | Bayonet Style | Adapter x Female NPT

For the spill-less transfer of petroleum products such as fuel oil, lube oil blending and tank truck delivery.
Specifications for Variant SKU: BA32-200 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Male Bayonet Style Dry Disconnect, 2in Female NPT
Material(s): Stainless Steel
Seal Material(s): Viton/FKM
Applications:
  • Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery.
  • The design of the Bayco bayonet dry disconnect system ensures a spill free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed.
Compatibility & Interchange Data:
  • Interchangeable with the Emco Wheaton™ Dry Break™.
Construction:
  • Swivels have a standard ZERK fitting.
  • Brass & Stainless Steel Adapters have a Brass poppet valve.
  • Aluminum Adapters have an Anodized Aluminum poppet valve.
Specifications:
  • Canadian registration number CRN# OH14055 all provinces.
  • Maximum operating pressure: 85 PSI at 70°F (21°C).
Stainless Steel
Part Number		 Brass
Part Number		 Aluminum
Part Number		 Size Seal Material
BA31-200 - - 2" Nitrile Rubber
BA32-200 - - 2" FKM
- BA31-300 BA61-300 3" Nitrile Rubber
- BA32-300 BA62-300 3" FKM
