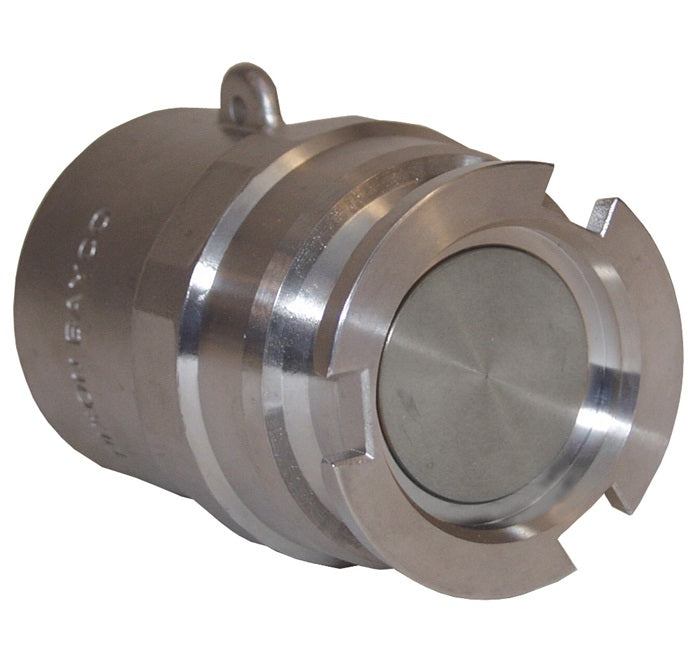

BA61-300 by Dixon Valve | Dry Disconnect | Bayonet Style | 3" Size | Adapter x Female NPT | Nitrile Rubber Seal | Aluminum

BA61-300 by Dixon Valve | Dry Disconnect | Bayonet Style | 3" Size | Adapter x Female NPT | Nitrile Rubber Seal | Aluminum

Save $39.06 Save $39.06
$380.06
$380.06 - $380.06
$380.06
$341.00
$341.00 - $341.00
$341.00

Dixon Valve
Dry Disconnect | Bayonet Style | Adapter x Female NPT

For the spill-less transfer of petroleum products such as fuel oil, lube oil blending and tank truck delivery.
Specifications for Variant SKU: BA61-300 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Male Bayonet Style Dry Disconnect, 3in Female NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery.
  • The design of the Bayco bayonet dry disconnect system ensures a spill free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed.
Compatibility & Interchange Data:
  • Interchangeable with the Emco Wheaton™ Dry Break™.
Construction:
  • Swivels have a standard ZERK fitting.
  • Brass & Stainless Steel Adapters have a Brass poppet valve.
  • Aluminum Adapters have an Anodized Aluminum poppet valve.
Specifications:
  • Canadian registration number CRN# OH14055 all provinces.
  • Maximum operating pressure: 85 PSI at 70°F (21°C).
Stainless Steel
Part Number		 Brass
Part Number		 Aluminum
Part Number		 Size Seal Material
BA31-200 - - 2" Nitrile Rubber
BA32-200 - - 2" FKM
- BA31-300 BA61-300 3" Nitrile Rubber
- BA32-300 BA62-300 3" FKM
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
