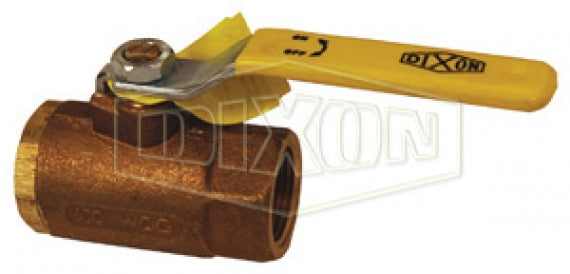

BBV25 by Dixon Valve | Domestic Ball Valve | Full Port | 1/4" Female NPT x 1/4" Female NPT | Bronze

BBV25 by Dixon Valve | Domestic Ball Valve | Full Port | 1/4" Female NPT x 1/4" Female NPT | Bronze

Save $0.40 Save $0.40
$36.53
$36.53 - $36.53
$36.53
$36.13
$36.13 - $36.13
$36.13

Dixon Valve & Coupling
Domestic Ball Valve | Bronze

For control of air, water, oil, and gas in hose or pipe lines.
Specifications for Variant SKU: BBV25 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s): Bronze
Features:
  • Blowout-proof stems
  • Full and standard port valves are repairable
Materials:
  • Bronze valve bodies, balls, and stems.
  • Glass-filled reinforced PTFE seats and stuffing box ring; stem seals and washers.
  • Plated steel handles and nuts with vinyl sleeves.
Specifications:
  • Pressure rating: 600 PSI CWP; 150 PSI saturated steam.
Approvals:
  • Meets WW-V 35C, Type II Composition
Part Number Female NPT Port
BBV25 1/4" Full
BBV38 3/8" Full
BBV50 1/2" Full
BBV75 3/4" Standard
BBV100 1" Standard
BBV125 1-1/4" Standard
BBV150 1-1/2" Standard
BBV200 2" Standard
BBV250 2-1/2" Standard
BBV300 3" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
