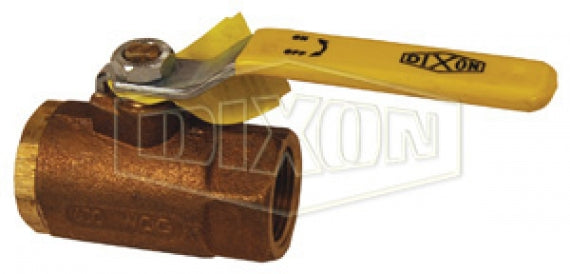

BBV250 by Dixon Valve | Domestic Ball Valve | Standard Port | 2-1/2" Female NPT x 2-1/2" Female NPT | Bronze

BBV250 by Dixon Valve | Domestic Ball Valve | Standard Port | 2-1/2" Female NPT x 2-1/2" Female NPT | Bronze

Save $86.86 Save $86.86
$781.77
$781.77 - $781.77
$781.77
$694.91
$694.91 - $694.91
$694.91

Dixon Valve & Coupling
Domestic Ball Valve | Bronze

For control of air, water, oil, and gas in hose or pipe lines.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BBV250 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Female NPT, Some Ends Match
Material(s): Bronze
Features:
  • Blowout-proof stems
  • Full and standard port valves are repairable
Materials:
  • Bronze valve bodies, balls, and stems.
  • Glass-filled reinforced PTFE seats and stuffing box ring; stem seals and washers.
  • Plated steel handles and nuts with vinyl sleeves.
Specifications:
  • Pressure rating: 600 PSI CWP; 150 PSI saturated steam.
Approvals:
  • Meets WW-V 35C, Type II Composition
Part Number Female NPT Port
BBV25 1/4" Full
BBV38 3/8" Full
BBV50 1/2" Full
BBV75 3/4" Standard
BBV100 1" Standard
BBV125 1-1/4" Standard
BBV150 1-1/2" Standard
BBV200 2" Standard
BBV250 2-1/2" Standard
BBV300 3" Standard
