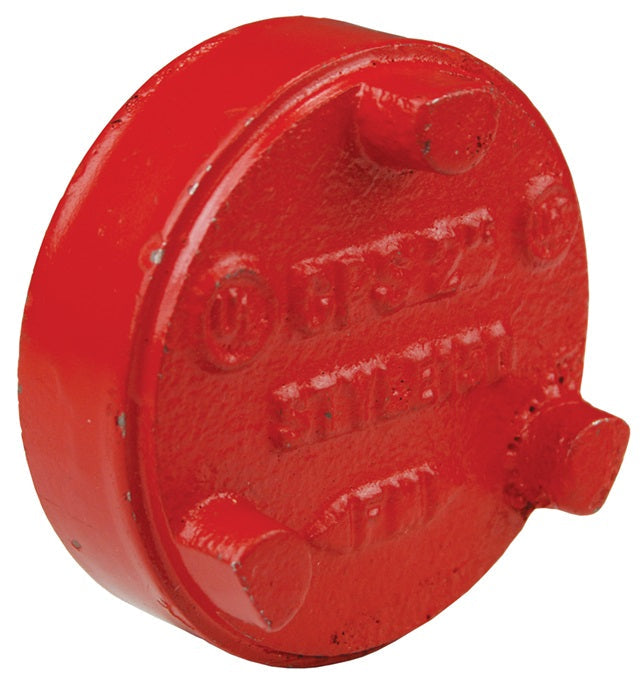

BEC80 by Dixon Valve | Series-BE | Blank Cap | for Grooved End Fittings | 8" Nominal Size | Ductile Iron

BEC80 by Dixon Valve | Series-BE | Blank Cap | for Grooved End Fittings | 8" Nominal Size | Ductile Iron

Save $38.67 Save $38.67
$119.15
$119.15 - $119.15
$119.15
$80.48
$80.48 - $80.48
$80.48

Dixon Valve
Blank Cap for Grooved End Fittings | Series-BE
Specifications for Variant SKU: BEC80 Dixon
Series: Series-BE
Shape (Orientation): No Orientation
Material(s): Ductile Iron
Comparable to:
  • Victaulic's #60
  • Grinnell's #7074
Material:
  • Ductile iron body with rust inhibiting paint.
Approvals:
  • Underwriters Listed
  • Factory Mutual approved
Ductile Iron
Part Number		 Nominal
Size		 Dimensions
E to E
BEC20 2" 7/8"
BEC25 2-1/2" 7/8"
BEC30 3" 7/8"
BECC50 5" 1-19/32"
BEC40 4" 1"
BEC60 6" 1"
BEC80 8" 1-3/16"
