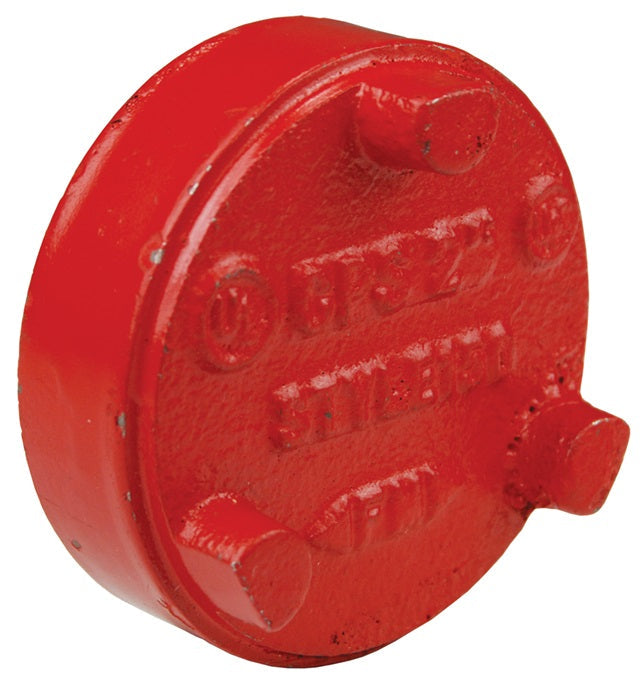

BECC50 by Dixon Valve | Series-BE | Blank Cap | for Grooved End Fittings | 5" Nominal Size | Ductile Iron

Save $3.76

$26.16

$26.16 - $26.16

$26.16

$22.40

$22.40 - $22.40

$22.40

Dixon Valve
Blank Cap for Grooved End Fittings | Series-BE

Quantity

Specifications for Variant SKU: BECC50 Dixon
Series:	Series-BE
Shape (Orientation):	No Orientation
Material(s):	Ductile Iron

Comparable to:
Victaulic's #60 Grinnell's #7074
Material:
Ductile iron body with rust inhibiting paint.
Approvals:
Underwriters Listed Factory Mutual approved


Ductile Iron Part Number	Nominal Size	Dimensions E to E
BEC20	2"	7/8"
BEC25	2-1/2"	7/8"
BEC30	3"	7/8"
BECC50	5"	1-19/32"
BEC40	4"	1"
BEC60	6"	1"
BEC80	8"	1-3/16"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
