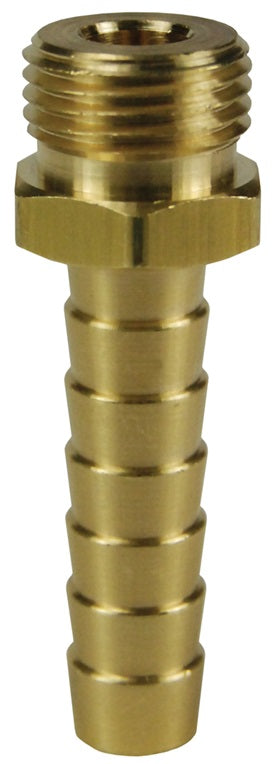

BLS516 by Dixon Valve | Long Shank Hose Coupling | Male Fitting | 3/4" Male NPSM x 5/8" Hose ID | Brass

BLS516 by Dixon Valve | Long Shank Hose Coupling | Male Fitting | 3/4" Male NPSM x 5/8" Hose ID | Brass

Save $7.36 Save $7.36
$18.43
$18.43 - $18.43
$18.43
$11.07
$11.07 - $11.07
$11.07

Dixon Valve
Long Shank Hose Coupling | Male Fitting | Male NPSM x Hose Barb
Specifications for Variant SKU: BLS516 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPSM, 5/8in Hose Barb
Material(s): Brass
Special Properties: Long
Notes:
  • Sizes 1/2" to 1" are machined; 1-1/4" to 2" are cast.
Male Fitting
Brass
Part Number		 Previous
Part Number		 Plated Steel Plated Iron Hose I.D. Threads
BLS414 - SLS414 - 1/2" 1/2" Male NPSM
BLS416 - - - 1/2" 3/4" Male NPSM
BLS516 - - - 5/8" 3/4" Male NPSM
BLS616 - SLS616 - 3/4" 3/4" Male NPSM
5931616C BLS818 SLS818 - 1" 1" Male NPSM
(note: 5931616C is NPSH thread)
BLS15 - - MLS15 1-1/4" 1-1/4" Male NPSM
BLS20 - - MLS20 1-1/2" 1-1/2" Male NPSM
BLS25 - - MLS25 2" 2" Male NPSM
Female Fitting
Brass
Part Number		 Previous
Part Number		 Plated Steel Plated Iron Hose I.D. Thread
BLS444 - SLS444 - 1/2" 1/2" Female NPSM
BLS446 - - - 1/2" 3/4" Female NPSM
BLS546 - - - 5/8" 3/4" Female NPSM
BLS646 - SLS646 - 3/4" 3/4" Female NPSM
5941616C BLS848 SLS848 - 1" 1" Female NPSM
(note: 5941616C is NPSH thread)
BLS33 - - MLS33 1-1/4" 1-1/4" Female NPSM
BLS43 - - MLS43 1-1/2" 1-1/2" Female NPSM
BLS53 - - MLS53 2" 2" Female NPSM
Complete Coupling
Brass
Part Number		 Previous
Part Number		 Plated Steel Plated Iron Hose I.D. Threads
BLS404 - SLS404 - 1/2" 1/2" Male NPSM x 1/2" Female NPSM
BLS406 - - - 1/2" 3/4" Male NPSM x 3/4" Female NPSM
BLS506 - - - 5/8" 3/4" Male NPSM x 3/4" Female NPSM
BLS606 - SLS606 - 3/4" 3/4" Male NPSM x 3/4" Female NPSM
5951616K BLS808 SLS808 - 1" 1" Male NPSM x 1" Female NPSM
(note: 5951616K is NPSH thread)
BLS48 - - MLS48 1-1/4" 1-1/4" Male NPSM x 1-1/4" Female NPSM
BLS63 - - MLS63 1-1/2" 1-1/2" Male NPSM x 1-1/2" Female NPSM
BLS78 - - MLS78 2" 2" Male NPSM x 2" Female NPSM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
