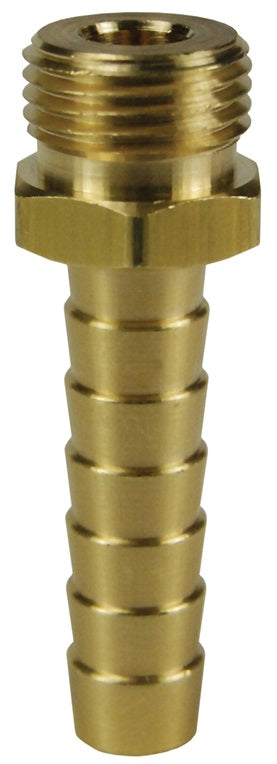

BLS616 by Dixon Valve | Long Shank Hose Coupling | Male Fitting | 3/4" Male NPSM x 3/4" Hose ID | Brass

Name: BLS616 by Dixon Valve | Long Shank Hose Coupling | Male Fitting | 3/4" Male NPSM x 3/4" Hose ID | Brass
Brand: Dixon
SKU: BLS616 Dixon
Price: 6.28 USD
Availability: InStock

Save $0.59

$6.87

$6.87 - $6.87

$6.87

$6.28

$6.28 - $6.28

$6.28

Dixon Valve
Long Shank Hose Coupling | Male Fitting | Male NPSM x Hose Barb

Quantity

Specifications for Variant SKU: BLS616 Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPSM, 3/4in Hose Barb
Material(s):	Brass
Special Properties:	Long

Notes:
Sizes 1/2" to 1" are machined; 1-1/4" to 2" are cast.

Male Fitting

Brass Part Number	Previous Part Number	Plated Steel	Plated Iron	Hose I.D.	Threads
BLS414	-	SLS414	-	1/2"	1/2" Male NPSM
BLS416	-	-	-	1/2"	3/4" Male NPSM
BLS516	-	-	-	5/8"	3/4" Male NPSM
BLS616	-	SLS616	-	3/4"	3/4" Male NPSM
5931616C	BLS818	SLS818	-	1"	1" Male NPSM (note: 5931616C is NPSH thread)
BLS15	-	-	MLS15	1-1/4"	1-1/4" Male NPSM
BLS20	-	-	MLS20	1-1/2"	1-1/2" Male NPSM
BLS25	-	-	MLS25	2"	2" Male NPSM

Female Fitting

Brass Part Number	Previous Part Number	Plated Steel	Plated Iron	Hose I.D.	Thread
BLS444	-	SLS444	-	1/2"	1/2" Female NPSM
BLS446	-	-	-	1/2"	3/4" Female NPSM
BLS546	-	-	-	5/8"	3/4" Female NPSM
BLS646	-	SLS646	-	3/4"	3/4" Female NPSM
5941616C	BLS848	SLS848	-	1"	1" Female NPSM (note: 5941616C is NPSH thread)
BLS33	-	-	MLS33	1-1/4"	1-1/4" Female NPSM
BLS43	-	-	MLS43	1-1/2"	1-1/2" Female NPSM
BLS53	-	-	MLS53	2"	2" Female NPSM

Complete Coupling

Brass Part Number	Previous Part Number	Plated Steel	Plated Iron	Hose I.D.	Threads
BLS404	-	SLS404	-	1/2"	1/2" Male NPSM x 1/2" Female NPSM
BLS406	-	-	-	1/2"	3/4" Male NPSM x 3/4" Female NPSM
BLS506	-	-	-	5/8"	3/4" Male NPSM x 3/4" Female NPSM
BLS606	-	SLS606	-	3/4"	3/4" Male NPSM x 3/4" Female NPSM
5951616K	BLS808	SLS808	-	1"	1" Male NPSM x 1" Female NPSM (note: 5951616K is NPSH thread)
BLS48	-	-	MLS48	1-1/4"	1-1/4" Male NPSM x 1-1/4" Female NPSM
BLS63	-	-	MLS63	1-1/2"	1-1/2" Male NPSM x 1-1/2" Female NPSM
BLS78	-	-	MLS78	2"	2" Male NPSM x 2" Female NPSM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
