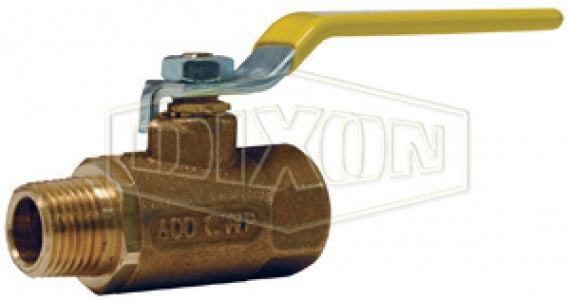

BMV100 by Dixon Valve | Ball Valve | Standard Port | 1" Male NPT x 1" Female NPT | Bronze

BMV100 by Dixon Valve | Ball Valve | Standard Port | 1" Male NPT x 1" Female NPT | Bronze

Save $66.18 Save $66.18
$165.45
$165.45 - $165.45
$165.45
$99.27
$99.27 - $99.27
$99.27

Dixon Valve & Coupling
Ball Valve | Bronze

For air, water, oil, and gas service.
Specifications for Variant SKU: BMV100 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1in Female NPT
Material(s): Bronze
Features:
  • Blow-out proof stem.
  • Adjustable packing gland.
Materials:
  • Chromium plated ball.
  • RTFE seats and stuffing box ring.
Specifications:
  • Pressure rating: 600 PSI.
  • Cold non-shock pressure rating: 150 PSI saturated steam.
Part Number Male NPT x Female NPT Port
BMV50 1/2" x 1/2" Standard
BMV75 3/4" x 3/4" Standard
BMV100 1" x 1" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
