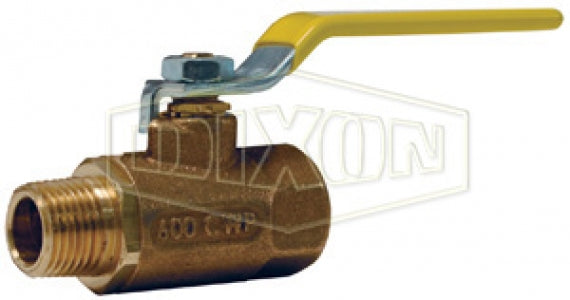

BMV75 by Dixon Valve | Ball Valve | Standard Port | 3/4" Male NPT x 3/4" Female NPT | Bronze

BMV75 by Dixon Valve | Ball Valve | Standard Port | 3/4" Male NPT x 3/4" Female NPT | Bronze

Save $46.37 Save $46.37
$115.92
$115.92 - $115.92
$115.92
$69.55
$69.55 - $69.55
$69.55

Dixon Valve & Coupling
Ball Valve | Bronze

For air, water, oil, and gas service.
Specifications for Variant SKU: BMV75 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Female NPT
Material(s): Bronze
Features:
  • Blow-out proof stem.
  • Adjustable packing gland.
Materials:
  • Chromium plated ball.
  • RTFE seats and stuffing box ring.
Specifications:
  • Pressure rating: 600 PSI.
  • Cold non-shock pressure rating: 150 PSI saturated steam.
Part Number Male NPT x Female NPT Port
BMV50 1/2" x 1/2" Standard
BMV75 3/4" x 3/4" Standard
BMV100 1" x 1" Standard
