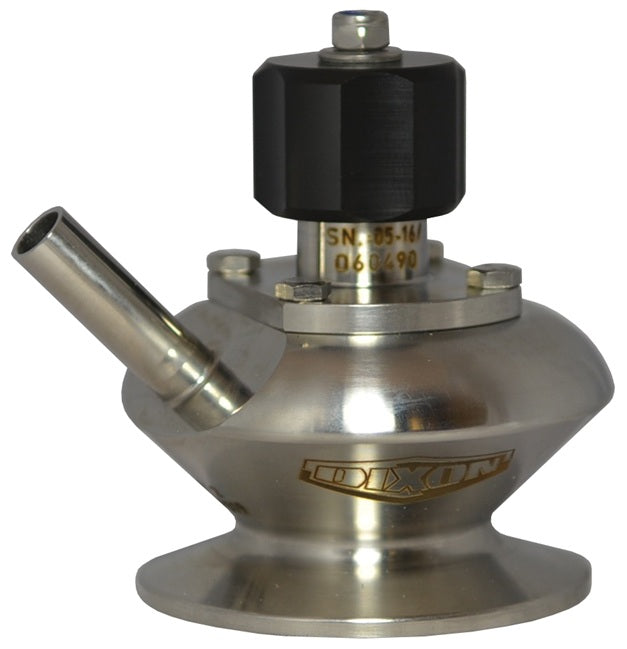

BSVS-HC100B025 Dixon Valve/Rieger 3A Sample Valve - Single Port with Manual Handwheel - 1" - 1-1/2" Clamp Valve - 1/4" Weld Port

Name: BSVS-HC100B025 Dixon Valve/Rieger 3A Sample Valve - Single Port with Manual Handwheel - 1" - 1-1/2" Clamp Valve - 1/4" Weld Port
Brand: Dixon
SKU: BSVS-HC100B025 Dixon
Price: 909.67 USD
Availability: InStock

Save $113.71

$1,023.38

$1,023.38 - $1,023.38

$1,023.38

$909.67

$909.67 - $909.67

$909.67

Dixon Sanitary Fittings Sanitary 3A Sample Valve with Manual Handle

The 3A sample valve allows easy and safe sampling of liquids from closed systems such as vessels and pipelines.

These valves are located in the pharmaceutical, bio-pharmaceutical, biochemical, cosmetic, food, dairy and beverage markets.

Quantity

Specifications for Variant SKU: BSVS-HC100B025 Dixon
Shape (Orientation):	No Orientation
Material(s):	316L Stainless Steel, 304 Stainless Steel

Features:
Valve body made from solid bar No dead space Drainable Connections suitable for orbital welding Hermetically sealed against environment Optimum cleanability Change of seals without special tools Long life of the PTFE-bellows Low spare part costs Manual actuator (hand wheel)
Materials:
In product contact: 1.4404/AISI 316L Non product contact: 1.4301/AISI 304 Product contact seals: PTFE bellows Surfaces: wetted product surfaces: Ra <= 32 (optional surface finishes available). Non product contact: Ra <= 63
Specifications:
Closing tension operating pressure: maximum 116 PSI Hand wheel version operating pressure: minimum 87 PSI, maximum 232 PSI Controlled air pressure: maximum 145 PSI

Single Port Part Number	Dual Port Part Number	Clamp Valve Size	Weld Port Size
BSVS-HC050B025	BSVD-HC050B025	1/2"	1/4"
BSVS-HC050B375	BSVD-HC050B375	1/2"	3/8"
BSVS-HC050B050	BSVD-HC050B050	1/2"	1/2"
BSVS-HC100B025	BSVD-HC100B025	1" - 1-1/2"	1/4"
BSVS-HC100B375	BSVD-HC100B375	1" - 1-1/2"	3/8"
BSVS-HC100B050	BSVD-HC100B050	1" - 1-1/2"	1/2"
BSVS-HC150B025	-	1-1/2"	1/4"
-	BSVD-HC150B050	1-1/2"	1/2"
BSVS-HC200B025	BSVD-HC200B025	2"	1/4"
BSVS-HC200B375	BSVD-HC200B375	2"	3/8"
BSVS-HC200B050	BSVD-HC200B050	2"	1/2"
BSVS-HC250B025	BSVD-HC250B025	2-1/2"	1/4"
BSVS-HC250B375	BSVD-HC250B375	2-1/2"	3/8"
BSVS-HC250B050	BSVD-HC250B050	2-1/2"	1/2"
BSVS-HC300B025	BSVD-HC300B025	3"	1/4"
BSVS-HC300B375	BSVD-HC300B375	3"	3/8"
BSVS-HC300B050	BSVD-HC300B050	3"	1/2"
BSVS-HC400B025	BSVD-HC400B025	4"	1/4"
BSVS-HC400B375	BSVD-HC400B375	4"	3/8"
BSVS-HC400B050	BSVD-HC400B050	4"	1/2"
