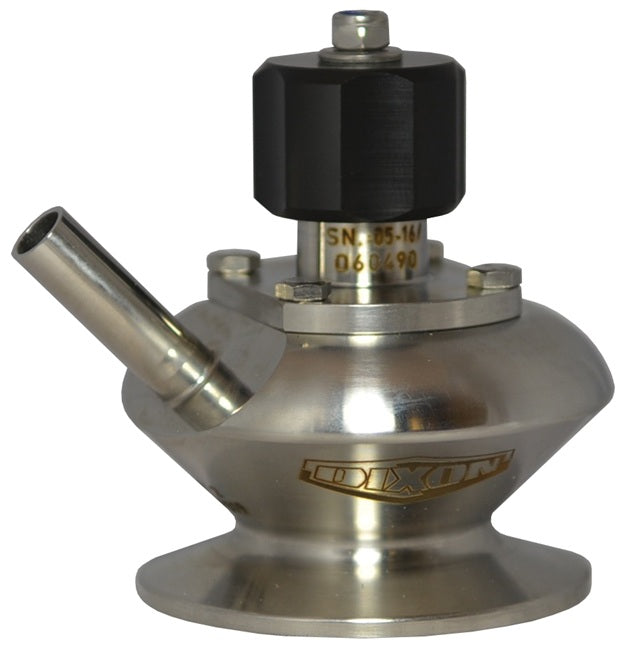

BSVS-HC400B375 Dixon Valve/Rieger 3A Sample Valve - Single Port with Manual Handwheel - 4" Clamp Valve - 3/8" Weld Port

BSVS-HC400B375 Dixon Valve/Rieger 3A Sample Valve - Single Port with Manual Handwheel - 4" Clamp Valve - 3/8" Weld Port

Save $118.52 Save $118.52
$1,066.71
$1,066.71 - $1,066.71
$1,066.71
$948.19
$948.19 - $948.19
$948.19

Dixon Sanitary Fittings Sanitary 3A Sample Valve with Manual Handle

The 3A sample valve allows easy and safe sampling of liquids from closed systems such as vessels and pipelines.

These valves are located in the pharmaceutical, bio-pharmaceutical, biochemical, cosmetic, food, dairy and beverage markets.
Specifications for Variant SKU: BSVS-HC400B375 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel, 304 Stainless Steel
Features:
  • Valve body made from solid bar
  • No dead space
  • Drainable
  • Connections suitable for orbital welding
  • Hermetically sealed against environment
  • Optimum cleanability
  • Change of seals without special tools
  • Long life of the PTFE-bellows
  • Low spare part costs
  • Manual actuator (hand wheel)
Materials:
  • In product contact: 1.4404/AISI 316L
  • Non product contact: 1.4301/AISI 304
  • Product contact seals: PTFE bellows
  • Surfaces: wetted product surfaces: Ra <= 32 (optional surface finishes available). Non product contact: Ra <= 63
Specifications:
  • Closing tension operating pressure: maximum 116 PSI
  • Hand wheel version operating pressure: minimum 87 PSI, maximum 232 PSI
  • Controlled air pressure: maximum 145 PSI
Single Port
Part Number		 Dual Port
Part Number		 Clamp Valve Size Weld Port Size
BSVS-HC050B025 BSVD-HC050B025 1/2" 1/4"
BSVS-HC050B375 BSVD-HC050B375 1/2" 3/8"
BSVS-HC050B050 BSVD-HC050B050 1/2" 1/2"
BSVS-HC100B025 BSVD-HC100B025 1" - 1-1/2" 1/4"
BSVS-HC100B375 BSVD-HC100B375 1" - 1-1/2" 3/8"
BSVS-HC100B050 BSVD-HC100B050 1" - 1-1/2" 1/2"
BSVS-HC150B025 - 1-1/2" 1/4"
- BSVD-HC150B050 1-1/2" 1/2"
BSVS-HC200B025 BSVD-HC200B025 2" 1/4"
BSVS-HC200B375 BSVD-HC200B375 2" 3/8"
BSVS-HC200B050 BSVD-HC200B050 2" 1/2"
BSVS-HC250B025 BSVD-HC250B025 2-1/2" 1/4"
BSVS-HC250B375 BSVD-HC250B375 2-1/2" 3/8"
BSVS-HC250B050 BSVD-HC250B050 2-1/2" 1/2"
BSVS-HC300B025 BSVD-HC300B025 3" 1/4"
BSVS-HC300B375 BSVD-HC300B375 3" 3/8"
BSVS-HC300B050 BSVD-HC300B050 3" 1/2"
BSVS-HC400B025 BSVD-HC400B025 4" 1/4"
BSVS-HC400B375 BSVD-HC400B375 4" 3/8"
BSVS-HC400B050 BSVD-HC400B050 4" 1/2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
